MS plate thickness and weight.
Mild steel plate in ASTM A36 / SS400 on standard 4×8 ft (1220×2440mm) sheets; larger structural plates by order. Weight is a density calculation: kg/m² = 7.85 × thickness in mm.

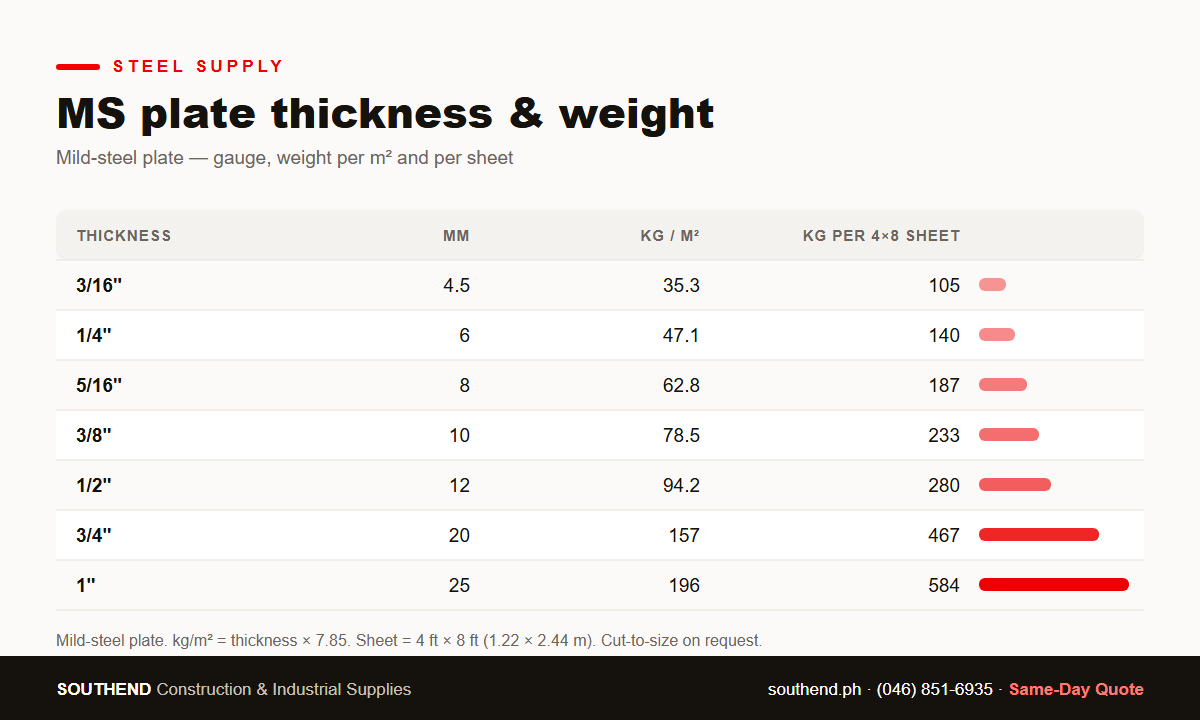

Sizes and weights
ASTM A36 / JIS SS400 · 4×8 ft sheet = 2.97 m²
| Thickness (call) | Nominal (mm) | kg/m² | kg per 4×8 sheet |
|---|---|---|---|
| 3/16" | 4.5 | 35.3 | 105 |
| 1/4" | 6 | 47.1 | 140 |
| 5/16" | 8 | 62.8 | 186.7 |
| 3/8" | 9 | 70.7 | 210 |
| 1/2" | 12 | 94.2 | 280.1 |
| 3/4" | 19 | 149.2 | 443.4 |
| 1" | 25 | 196.3 | 583.4 |
Imperial-called plates are normally supplied at the metric nominal (1/4" = 6.0mm). True-imperial 6.35mm runs about 5.8% heavier — a true 1/4" 4×8 sheet is ~148 kg. Confirm the actual millimeter on your quote.
Grades
- ASTM A36 / JIS SS400 mild steel. Checkered (tread) plate also stocked.
How it's sold
Sold per sheet; cut-to-size and volume orders are priced per kilogram. Send your plate schedule and we quote it the same day. Send your list — spec sheet, drawing or BOQ — and we quote it back the same day.
Common questions
How do I compute plate weight?
kg/m² = 7.85 × thickness in mm. A 4×8 ft sheet is 2.97 m², so multiply kg/m² by 2.97 for the sheet weight.
Is a 1/4-inch plate really 6mm?
Usually yes — PH stock is supplied at the metric nominal. A true 1/4" (6.35mm) is about 5.8% heavier. Confirm which one your design assumes.
What sheet sizes are available?
4×8 ft is the standard sheet; heavier structural plate comes in 5×20 ft and 6×20 ft by order.
