I-beam supplier Philippines.

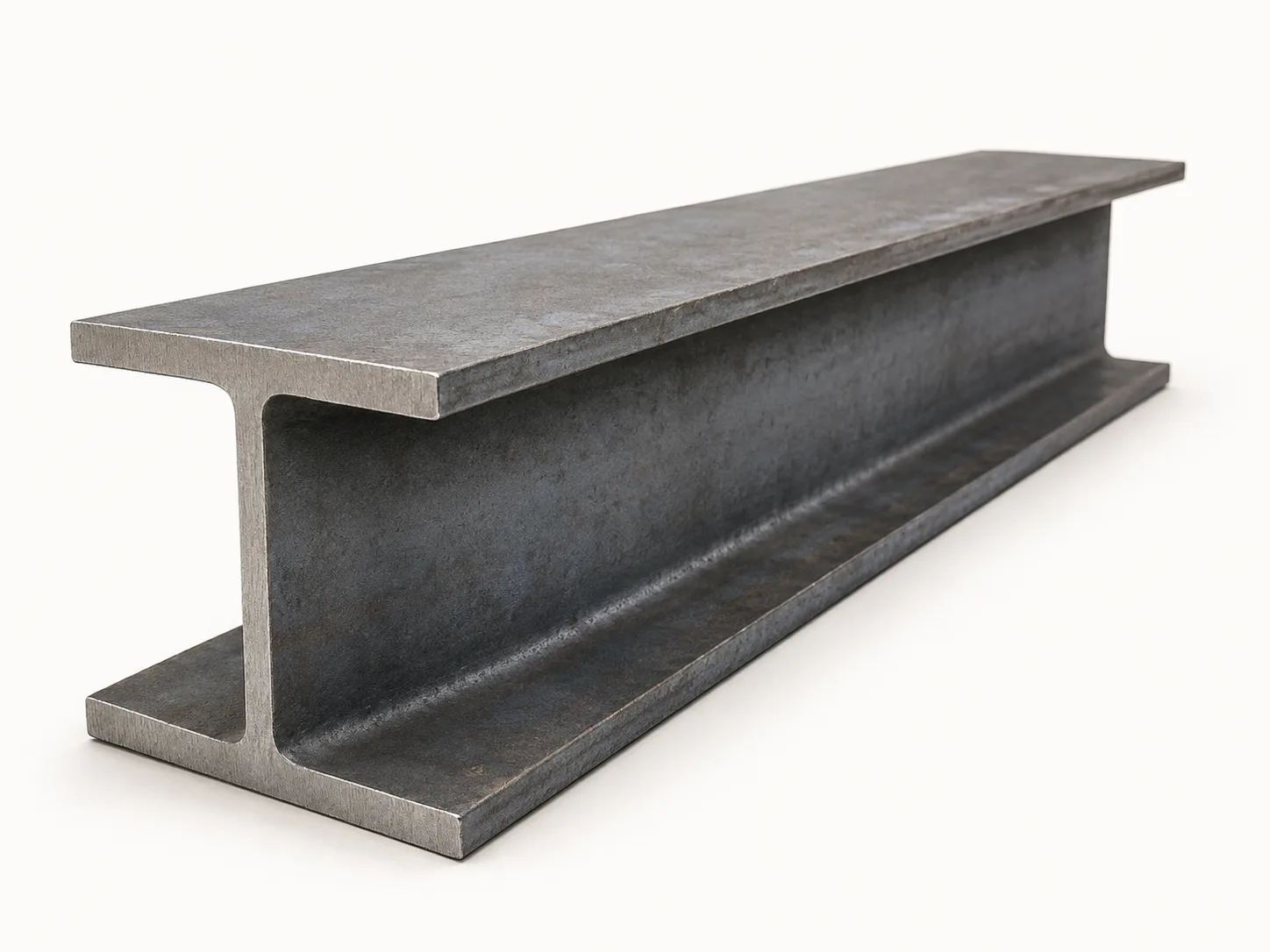

Structural I-beams in ASTM A36 / A992, supplied in 6.0m and 12.0m lengths and priced per kilogram at project volume. In Philippine practice "I-beam" usually refers to the wide-flange section — the American W-shapes below and their metric JIS H-beam equivalents are both supplied; the classic narrow-flange S-shape is available by order.
Sizes and weights
ASTM A6 W-shapes · A36 / A992 — designation weight is exact by definition (W8×18 = 18 lb/ft)
| Designation | Nominal depth (in) | lb/ft | kg/m | kg per 6 m | kg per 12 m |
|---|---|---|---|---|---|
| W6 × 9 | 6 | 9 | 13.39 | 80.4 | 160.7 |
| W8 × 10 | 8 | 10 | 14.88 | 89.3 | 178.6 |
| W8 × 18 | 8 | 18 | 26.79 | 160.7 | 321.4 |
| W10 × 15 | 10 | 15 | 22.32 | 133.9 | 267.9 |
| W12 × 14 | 12 | 14 | 20.83 | 125 | 250 |
| W14 × 22 | 14 | 22 | 32.74 | 196.4 | 392.8 |
| W18 × 35 | 18 | 35 | 52.09 | 312.5 | 625 |
| W24 × 55 | 24 | 55 | 81.85 | 491.1 | 982.2 |
kg/m is converted from the designation weight (1 lb/ft = 1.4882 kg/m) — the designation weight itself is exact by definition. Availability of specific W-sections varies by mill; uncommon sections are by order.
Grades
- ASTM A36 (250 MPa) is the common supply; A992 (345 MPa) on some imports — confirm per delivery for design use.
How it's sold
Sold by designation and length; project volume is priced per kilogram (per metric ton). Metric H-beam sizes (100×100 to 300×300) are on our wide flange page. Send your beam schedule and we quote it the same day. Send your list — spec sheet, drawing or BOQ — and we quote it back the same day.
Common questions
I-beam vs H-beam vs wide flange — what is the difference?
In PH usage they usually mean the same wide-parallel-flange section. Strictly, the classic I-beam (S-shape) has narrower, tapered flanges; the H-beam / wide flange (W-shape or JIS HW) has wide parallel flanges and is what is normally stocked and specified here.

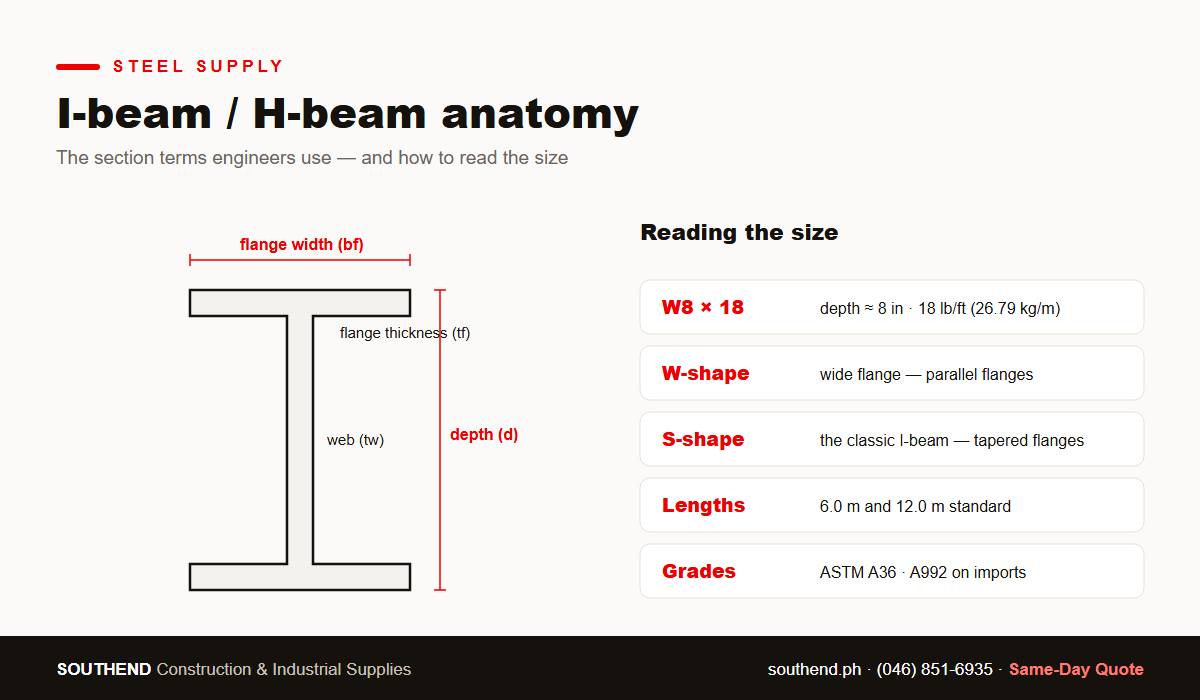

What do the numbers in W8×18 mean?
Nominal depth in inches × weight in pounds per foot. A W8×18 is about 8 inches deep and weighs exactly 18 lb/ft (26.79 kg/m), so a 6m length is about 161 kg.
What lengths are available?
6.0m and 12.0m are the common stock lengths; 9.0m by order.
How are I-beams priced in the Philippines?
By section and length at retail; per kilogram (per metric ton) at project volume. Send your beam schedule for a same-day quote.
