Specifications
| Material | Mild steel |
| Grade | ASTM A307 |
| Standard | ASTM A36 |
| Diameters | 3/8" to 1" |
| Lengths | 1" to 6" |
| Thread | UNC / metric coarse |
| Finish | Plain (black) / Zinc-plated / Hot-dip galvanized |
Description

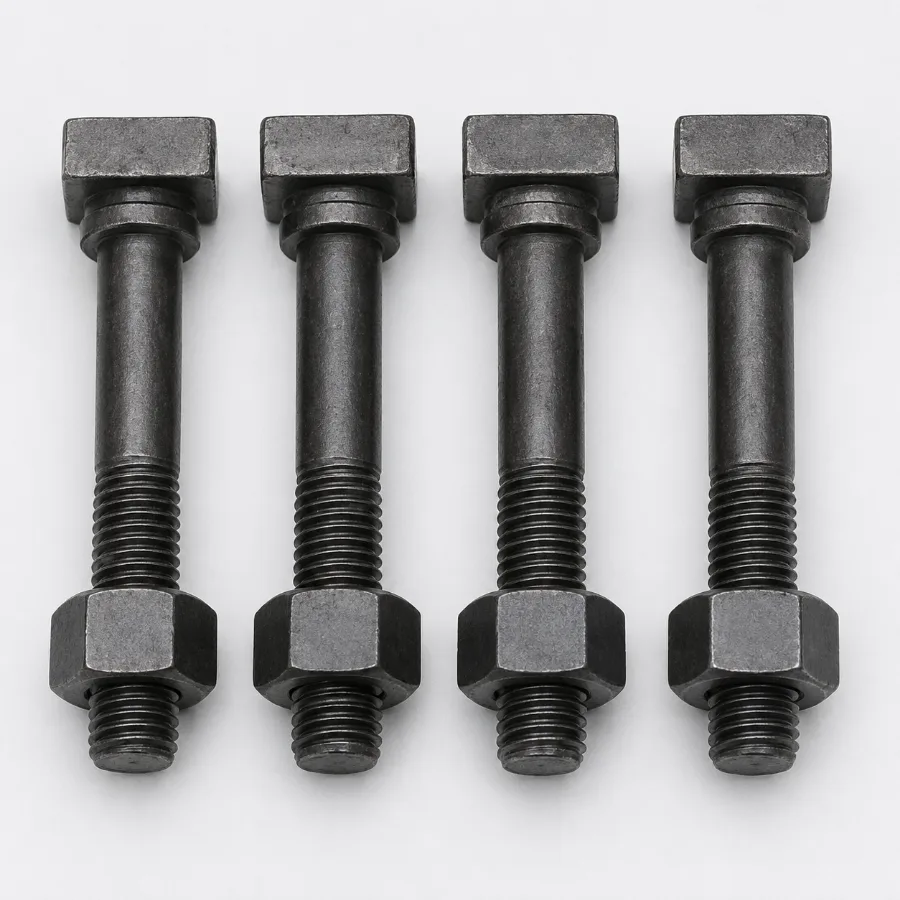

Square Head Bolt with Collar — ASTM A307 bolt for structural, machinery and general fastening. Complete with nut and washer on request. Stocked across common diameters and lengths in plain (black) and other finishes.
The square head bolt with collar has a square head and an integral collar (a shoulder beneath the head) that seats squarely against the mounting surface, resisting rotation and spreading the clamping load. This design is used on machinery, liner plates and equipment where the bolt must not turn as its nut is tightened, and where the collar provides a clean, load-bearing seat. It is a specialised industrial fastener rather than a general bolt.
Square head bolts with collar are supplied in a range of diameters and lengths with matching nuts, in the grades suited to their heavy-duty role. They are specified for particular machinery and liner applications. Confirm the sizes and grade in the specifications below.
