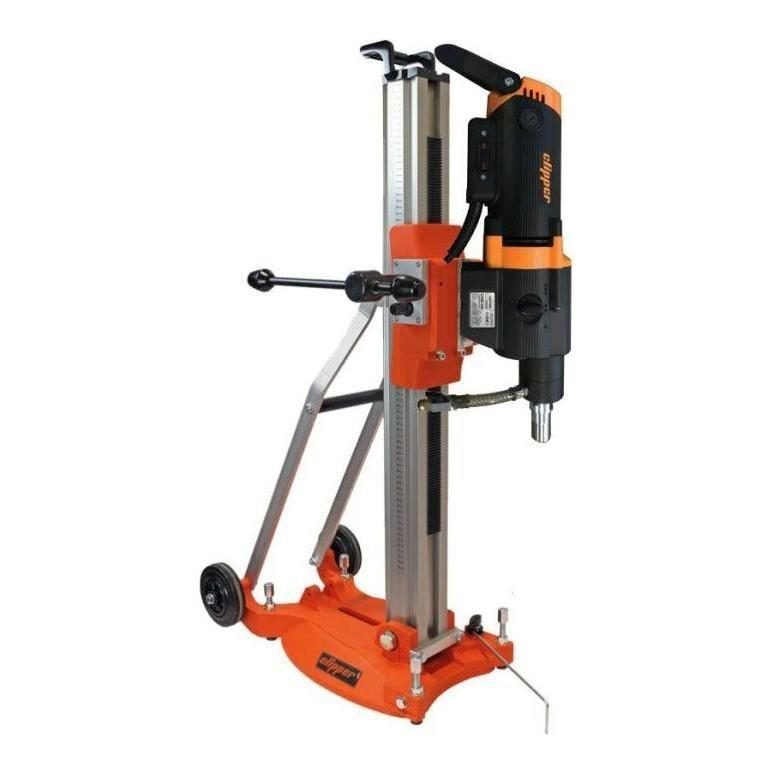

Norton CDM 353 Core Drill With Rig Stand
Norton CDM 353 Core Drill with Rig Stand CDM 353 + CDR 353 Norton CDM 353 Core Drill Norton CDR 353 Rig Stand Powerful 3.3kW, 3 Speed Handheld Drill Motor with combined spindle 1-1/4". Can be used on a drill stand. Aluminum drill stand combining rigidity, precision and ease of use.
- Brand
- On request
- Category
- Power Tools
- Subcategory
- Drills & Drivers
- Sold per
- unit
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
Accurate and smooth drilling guide of four high performance nylon rolls. Easily accessible guiding wheels for wear compensation adjustment. Features Benefits • Powerful 3300W drilling motor • 3-speed gearbox • Standard motor mounting fixture • Overload protection • LED load indicator • Soft-start switch • Mechanical clutch • Oil-bath lubricated gearbox • Powerful and professional motor • For a wide drilling diameter range • Fits to most drilling rigs on the market • For a wide drilling diameter range • Maintenance-free, Life-Long Lubrication • For optimum drilling in-feed and longer life.
• Limitation of starting current • For optimal protection of motor and tools Features Benefits • Aluminum column • Multi-purpose drive-lever • Roll-guided carriage • Transport Wheels • Transport handle • Pre-Mounted Rig • Standard motor mounting fixture • 4 points level adjustment • Robust, reliable and lightweight • High accuracy drill guiding, little maintenance. • Quick and easy motor mounting without any additional tools • Easy and ergonomic handling • Can be used for levelling and locking screws. • 2 different reports/ratio for an easy work.
Norton CDM 163 Core Drill Specifications Model 70184647810 Power 3300 W Volts 230V 1 Phase Range 30-350mm RPM under load 192 / 390 / 570 Application Wet Connection 1-1/4" Weight 13.5 kg Norton CDR 163 Rig Stand Specifications Model 310468581 + 310472133 Diameter Max 400mm Hub 690mm Column Aluminum Column Section 70 x 70mm Base Dowel + Vacuum Base dimension 370 x 550mm Weight 23.9 kg Bit Guide Yes Motor mounting plate Plate included Carraige Aluminum Carriage guiding system Rolls Carriage handle Yes Carraige travel 1: 1 + 2:1 Braces Yes Tilting 0-45 degrees Spirit Level Yes Transport Wheels Yes Height 1080 mm.
