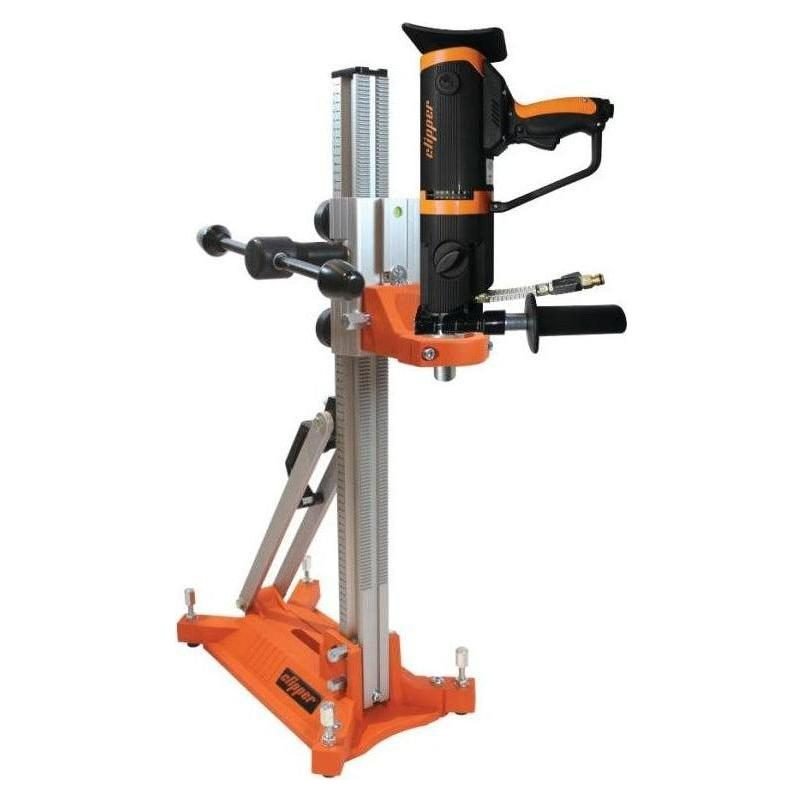

Norton CDM 163 Core Drill With Rig Stand
Norton CDM 163 Core Drill with Rig Stand CDM 163 + CDR 163 Norton CDM 163 Core Drill Norton CDR 163 Rig Stand Powerful 1.8kW, 3 Speed Handheld Drill Motor with combined spindle 1/2 + 1-1/4". Can be used on a drill stand. Aluminum drill stand combining rigidity, precision and ease of use. Accurate and smooth drilling guide of four high performance nylon rolls. Easily accessible guiding wheels for wear compensation adjustment.
Sold per unit. Brand and stock confirmed on your quote.
Details
| Category | Power Tools |
| Type | Bits, Blades & Discs |
| Sold per | unit |
Full specifications are confirmed with your quote.
Description
Features
- Powerful 1800W drilling motor
- 60mm ring on body
- Oil-bath lubricated gearbox
- Delivered in suit case
- For both handheld and rig-mounted drilling
- For the mounting of 1-1/4 and 1/2 core bit
- East torque-control and comfortable to use
- Can be mounted on drill rig
- For a wide drilling diameter range
- Maintenace-free, Life-Long Lubrication
- For users of safety
- Limitation of starting current and speed.
- Protection of electrical & mechanical parts for longer life
- Easy and safe transportation
Features
- Left and right mounting drive-lever
- Ring mounting motor collar (60mm)
- Robust, reliable and lightweight
- Easy to use even in confined environments.
- Can be used for levelling and locking screws.
- For accurate column levelling.
- High accuracy drill guiding, little maintenance.
- Quick and easy motor mounting without any additional tools
- Easy and ergonomic handling
- Use it directly out of box Norton CDM 163 Core Drill
Specifications
Model 70184647807 Power 1800 W Volts 230V 1 Phase Range 15-160mm RPM under load 540 / 1200 / 2280 Application Wet & Dry Connection 1/2 + 1-1/4" Weight 8.1 kg Norton CDR 163 Rig Stand
Specifications
Model 310468577 Diameter Max 160mm Hub 600mm Column Aluminum Column Section 45 x 60mm Base Dowel + Vacuum Base dimension 280 x 460mm Weight 9.6 kg Bit Guide No Motor mounting plate Ring 60mm Carraige Aluminum Carriage guiding system Rolls Carriage handle Yes Carraige travel 1: 1 Braces Yes Tilting 0-45 degrees.
