Details
| Brand | Koike |
| Category | Welding Supplies |
| Type | Welding & Cutting Machines |
| Sold per | pc |
Full specifications are confirmed with your quote.
Description

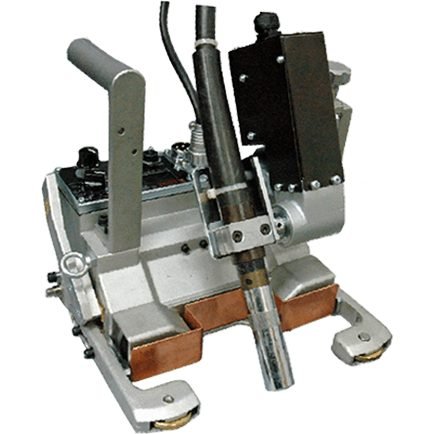

- Tack welding is made by repeating welding and dry-run traverse alternatively. Automatically switched to maximum speed during dry-run traverse to improve work efficiency.
- Ultra-compact & lightweight – The 6.8 kg light weight unit gives improved handling and set-up.
- Strong drawbar pull – 16 kg magnetic force assures a stable motion.
- Solid structure – Maintenance free aluminum die cast body makes it lighter and durable.
- High speed operation – Maximum speed of 1500 mm/min can achieve high-speed welding
- Low center of gravity design – Low center of gravity gives constant motion.
- High clearance – It can run over weld beads easily.
- Easy data input – Tack information is digitally input and stored to ensure repeatability. Data is input by distance not time to ensure same welding length at different speed. It can include arc stable timer, crater time and crater fill distance in the parameters.
- Digital display – Digital display shows actual parameters or welding speed. Machine Weight Standard Magnet Model: 6.9 kg Strong Magnet Model: 7.5 kg Machine Dimension(W×D×H) 277mm(W)×255mm(D)×264(H) Traction Force 16kg Gap(F.L. ~ Bace Board) 6mm Magnet Up and Down Mechanism Magnet Lever Driving Method 4-Wheel Driving Rubber Roller (Chain Transmission) Magnet-type Permanent Magnet Traverse Speed 50~1500mm/min Tracing Method Guide Roller (being pushed against Vertical plates) Applied Posture Standard Magnet Model: Horizontal position Fillet Welding Strong Magnet Model: Vertical position Fillet Welding Torch Adjust Range Torch Angle 40°~55° Up and down 45mm Forward and Backward 45mm Forward and Angle 5° Angle at both Forward / Backward Automatic Stop Function Limit Switch (equipped at both sides of Carriage at FL +20 mm height) Fine Adjustment of Carriage Position Included Non-Welded Portion Approximately 270 mm (in total at both Start and End point) Power Cable Y-Branch Cable (Power and Signal cable Integrated)
- Carriage ~ Branch: 6 m,
- Branch ~ Power: 10 m,
- Branch ~ Wire Feeder: 0.5 m (with matching Panasonic-type Connector) ※ Please consult when using welding machine other than Panasonic. Welding Torch Straight WHM (C) – 350S & 500S Curved 350A & 500A Torch Hold Diameter Straight Torch Holder: φ20 mm Curved Torch Holder: φ16~20 mm Diameter Motor DC Motor with Encoder Input Power AC100~240V 50/60Hz.
