Koike PICLE-1-II-T (AUTO PICLE S) Pipe Cutting Machine

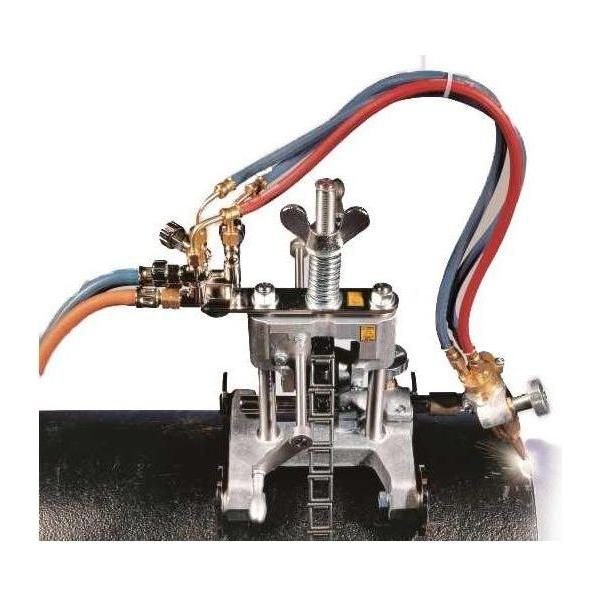

Koike PICLE-1-II-T (AUTO PICLE S) Pipe Cutting Machine The Picle-1-II is a manual driven portable pipe cutting machine for trimming and beveling pipes. The chain drive is effected over a large worm and a worm wheel. The low transmission ratio leads to an absolutely frictionless feed.
- Brand
- Koike
- Category
- Welding Supplies
- Subcategory
- Welding Machines
- Sold per
- pc
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
The transmission chain consists of simply constructed, smoothly interlocking chain links. Due to the chain link’s easy insertion and removal a fast exchange for varying pipe diameter is guaranteed. The adjustments for bevel cutting result from an angle scale at the torch bracket.
• Standard chain for cutting pipe diameter of 114 - 600 mm • The low transmission ratio leads to an absolutely frictionless feed. • The torch adjustments for bevel cutting are effected over an angle scale. • Easy operation and attendance • Low weight Scope of Delivery • Cutting machine Picle 1-II • Cutting nozzles (5-30 mm material thickness) • Chain (2.
4M) • Tool set • Operation instructions Specifications Picle-1 II Cutting thickness 5-50 mm Bevel cutting 0-45° Effective cutting diameter 114-600 mm Drive Method manual Height 410 mm Wheel width 210 mm Type of gas Acetylene, Propane Weight 8.5 kg Auto Picle-S Cutting thickness 5-50 mm Bevel cutting 0-45° Cutting speed 100-700 mm/min Effective cutting diameter Standard 150-400 mm D600 type rail 400-600 mm D900 type rail 600-900 mm D1200 type rail 900-1200 mm D1500 type rail 1200-1500 mm Drive method PWM Control Height 400 mm Wheel width 230 mm Operation box Pendant type Type of gas Acetylene, Propane Weight 15.0 kg.
