Koike Mini Mantis II H-Beam Cutting Machine

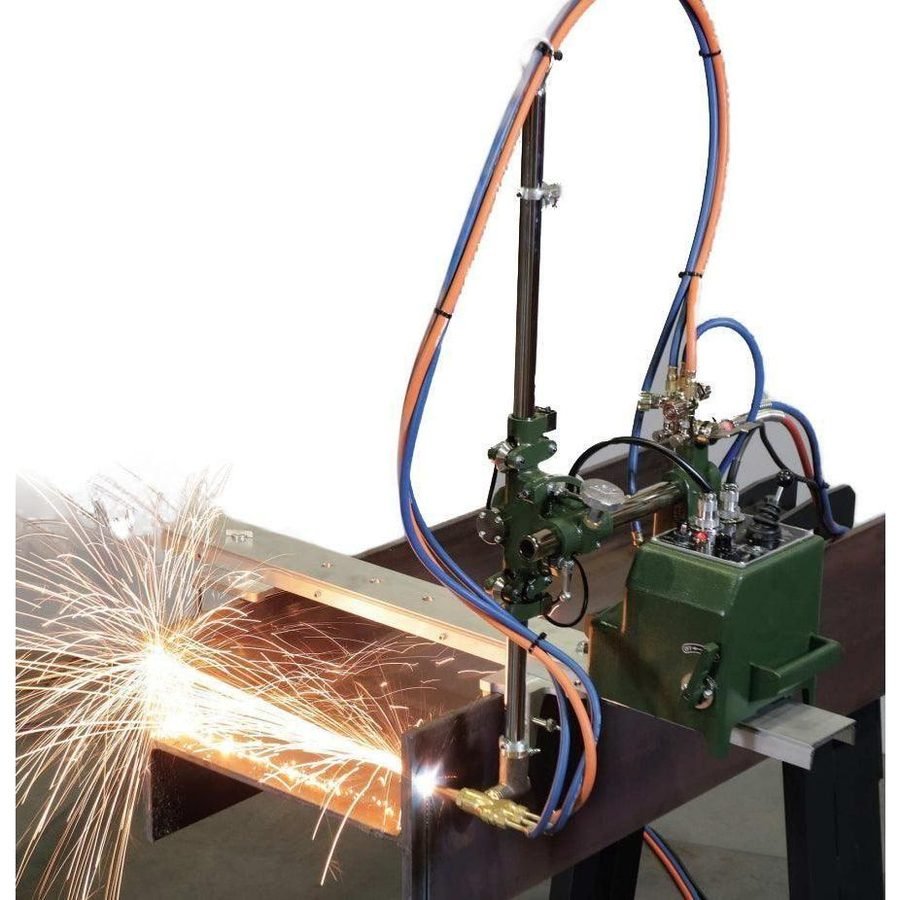

Koike Mini Mantis II H-Beam Cutting Machine MINIMANTIS II is the most powerful cutting machine for cutting H-beam. Designed to make diagonal cut on the web and flange, and also bevel cutting, simply by changing the angle of the rail or the Up/Down rack bar, as well as the straight cutting.
- Brand
- Koike
- Category
- Welding Supplies
- Subcategory
- Welding Machines
- Sold per
- pc
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
Equipped with 2 drive motors for web and flange cutting. The carriage moves along the rail to cut the web and torch moves up and down to cut the flange. Therefore there is no need to align or rotate the H-beam when cutting.
In addition, it is possible to use it in combination with 3 types of rails with different length, according to the web dimension. • Setting time reduced by the integrated main body and guide rail. • Easy carry and motion due the lightweight, also reduces the effort in movement.
• Diagonal cutting on web by 35° and bevel cutting on the flange up to 45°. • PWM control provides stable feeding speed. • Steel plate can also be cut.
Usage • Straight-Line • H-Beam • Various Steel Shape Cutting thickness 5-50 mm Cutting speed 100-700 mm/min Effective cutting range (right angle) Web 150-600 mm with 600 rail Flange 150-400 mm with ST-400 Bevel cutting angle Web 0-35° Flange 0-45° Drive method Web Friction Flange Rack and Pinion Speed control method PWM control Machine dimensions (W×H×D) 500 mm × 760 mm × 1050 mm Type of gas Acetylene, Propane, natural gas and mapp gas Weight 20.0 kg (Main body + 600 rail) Main components and Accessories - Cutting Machine Main Body [MINIMANTIS II] - Power Cable (5M) - Instruction Manual - Fuse - Screwdrive - Wrench - Cutting Tip Cleaner - Cutting Tip 106 #0, 1, 2.
