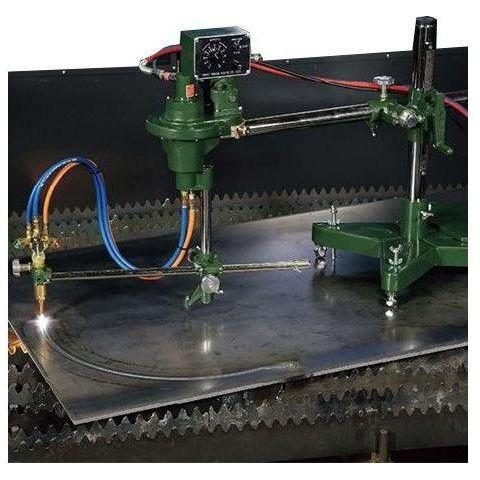

Koike IK-70 Automatic Circle Cutting Machine
Koike IK-70 Automatic Circle Cutting Machine The IK-70 is a portable automatic oxy-fuel circle cutting machine, especially designed for cutting circles, with or without bevel, on even surfaces allowing to cut circles with a diameters of 30-1000 mm.
Sold per pc. Brand and stock confirmed on your quote.
Details
| Brand | Koike |
| Category | Welding Supplies |
| Type | Welding & Cutting Machines |
| Sold per | pc |
Full specifications are confirmed with your quote.
Description
- Compact control unit
- Low weight and high stability
- No entangling hoses due to the rotating gas manifold
- Simple positioning mechanism
- Variable operation possibilities Usage
- Circle Model 600 1000 Cutting thickness 5-50 mm (in case of #4 cutting tip) Bevel cutting angle 0-45° Cutting diameter φ30-600 mm φ150-1000 mm Cutting speed 0.2-6 rpm 0.04-1.5 rpm Speed control method PWM control Motor 15WDC Motor Type of gas Acetylene, propane Weight 24.0 kg 55.0 kg Main components and Accessories - Cutting Machine Main Body [IK-70 600 or 1000] - Power Cable (5M) - Instruction Manual - Fuse - Cutting Tip Cleaner - Cutting Tip 106 #0, 1, 2.
