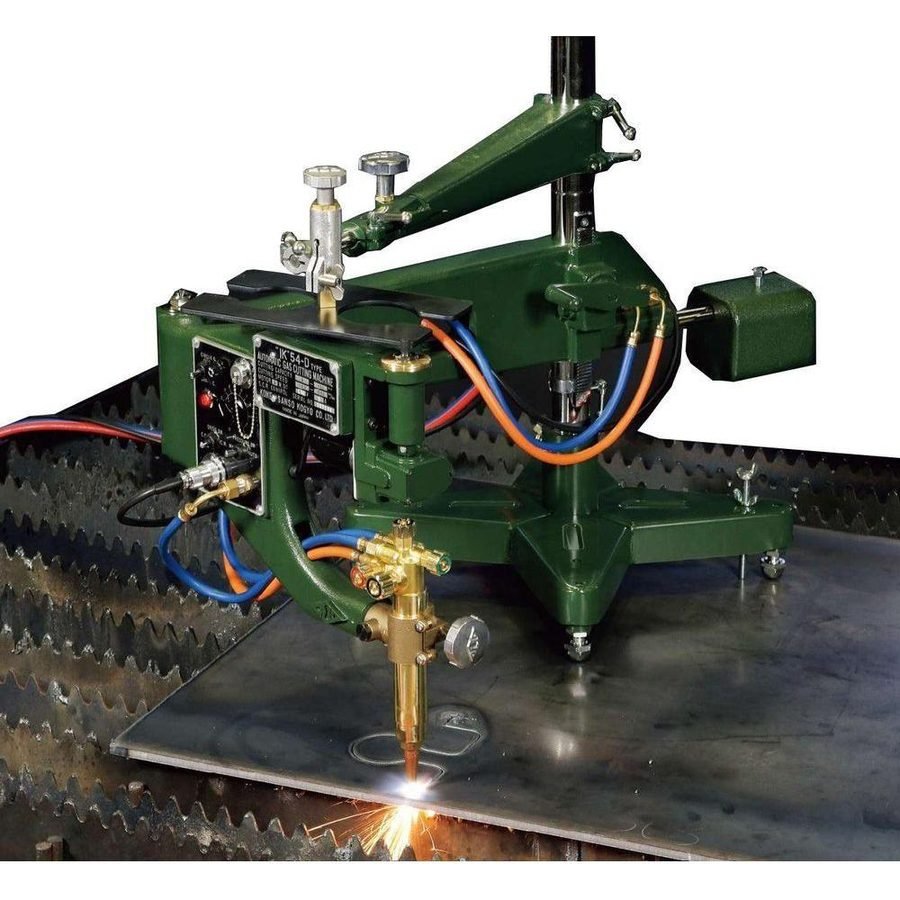

Koike IK-54D Automatic Shape Cutting Machine
Koike IK-54D Automatic Shape Cutting Machine The IK-54 D is a high quality and robust shape cutting machine with high production accuracy. It allows to cut steel plates of a material thickness up to 100 mm. An extremely powerful permanent magnet guarantees a constant feed even when cutting difficult shapes. The magnet rolls (for sampling) have different diameter (8, 10, 15 and 20 mm). By exchanging the magnet roll, various cut sizes with the same template are achieved.
Sold per pc. Brand and stock confirmed on your quote.
Details
| Brand | Koike |
| Category | Welding Supplies |
| Type | Welding & Cutting Machines |
| Sold per | pc |
Full specifications are confirmed with your quote.
Description
- Cutting oxygen and feed are operated with easy-to-use control unit
- Extreme powerful permanent magnet
- S.C.R. control system for constant feed
- Rotatable burner support
- Circle cutting (up to 1700 mm) possible Usage
- Circle Cutting thickness 5-100 mm Cutting circle 30-700 mm(φ 600-1700 mm, in case of Main Shaft) Cutting rectangle 30-600 mm(□ 500-1200 mm, in case of Main Shaft) Cutting speed 100-1000 mm/min Speed control method PWM control Magnetic roller diameter φ 10 mm Type of gas Acetylene, Propane, natural gas and mapp gas Machine dimensions (W×H×D) 500 mm × 760 mm × 1050 mm Weight 44.0 kg (Weight included) Main components and Accessories - Cutting Machine Body [IK-54 D] - Straight Ruler - Centering Fitting - Power Cable (5M) - Instruction Manual - Fuse - Wrench - Cutting Tip Cleaner - Cutting Tip 106 #0, 1, 2.
