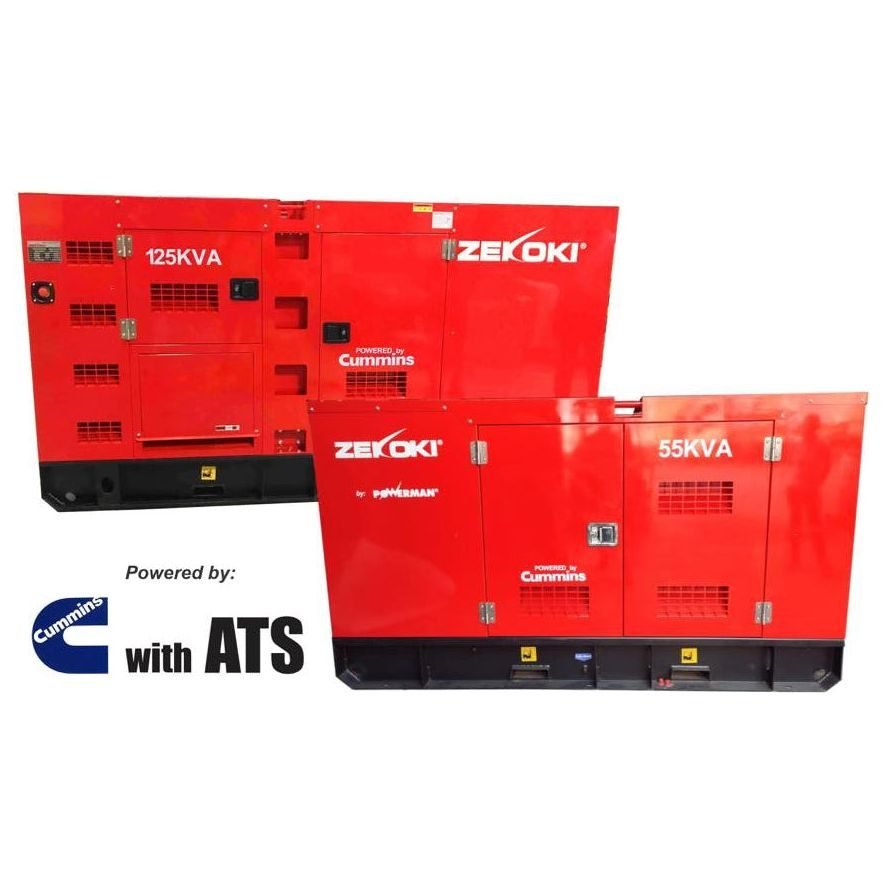

Zekoki Silent Type Diesel Generator Set With ATS (Cummins)

SMARTGEN HGM6120 CONTROL DIGITAL PANEL BOARD AND CONTROL MODULE Genset Code / Model ZKK68000D-S1-ATS ZKK68000D-S3-ATS ZKK125000-51-ATS ZKK125000-S3-ATS Genset Type SILENT TYPE Prime Power Output 50kVA/ 50kW 62kVA/ 50kW 91kVA / 91kW 114kVA / 91 kW Standby Power Output 55kVA/ 55kW 68kVA/ 55kW 100kVA / 100kW 125kVA / 100kW Consumption 100% (L/H) 15.8 15.8 26.3 26.3 dBA @7m 70 70 70 70 Fuel Tank Capacity (L) 200 200 300 300 ENGINE SPECIFICATION Engine Model 4BTA3.9-G2 4BTA3.9-G2 6BT5.9-G2 6BT5.9-G2 Number of Cylinders 4 4 6 6 Cylinder arrangement Vertical In-Line Cycle 4-Stroke Aspiration Turbocharged Bore x Stroke(mm x mm) 102*120 102*120 102*120 102*120 Displacement (Liter) 3.9 3.9 5.9 5.9 Compression Ratio 16.5: 1 16.5:1 17.5:1 17.5:1 Prime Power/Speed (kW/rpm) 60 / 1800 60 / 1800 105 / 1800 105 / 1800 Standby Power/Speed (kW/rpm) 65/1800 65/1800 115 / 1800 115 /1800 Speed Governor Electrical Electrical Mechanical Mechanical Cooling System Water-cooled, 40°c Radiator Speed Stability (%) ≤5% ≤5% ≤5% ≤5% Total lubrication system capacity (L) 11 11 16.4 16.4 Coolant capacity (without radiator) (L) 7.9 7.9 9.1 9.1 Fuel Consumption at 100% Load (g/kWh) 220(at1800RPM) 221(at1800RPM) Starter Motor DC24V Alternator AC24V ALTERNATOR Alternator Model KAL224E2 KAL224D2 KA Lll274E KA Lll224L-5 ATS Current (A) 400 250 630 400 Voltage (V) 220 127/220 220 220/127 Rated Current (AMP) 227.2 164 413.6 298.5 Exciter type Brushless, Self-Excited Power Factor 1 0.8 1 0.8 Voltage Adjust range ≤5% ≤5% ≤5% ≤5% Voltage Regulation NL-FL ≤±0.5% ≤±0.5% ≤±0.5% ≤±0.5% Insulation Grade H H H H Protection Grade IP23 IP23 IP23 IP23 Overall Size L x W x H (cm) 228x102x133 271X114x159 Weight (kg.) 1100kg 1450kg.
