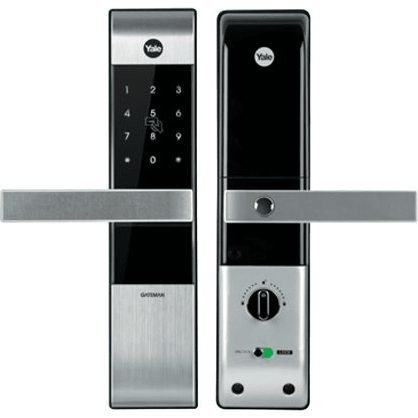

Yale YDM 3109 Digital Mortise Type Door Lock (Card Access)
Yale YDM 3109 Digital Mortise Type Door Lock (Card Access) YDM3109 mortice lock is a smart solution for residential & "light" commercial applications. 2 access solutions to open your door: RF Card key & PIN code. Innovative features, such as alarms, fake code or automatic locking, YDM3109 will provide comfort and will increase your feeling of security.
Sold per pc. Brand and stock confirmed on your quote.
Type
Other sizes and models
Not sure of the size? Add it anyway and tell us in the notes.
Same-Day Quote · Delivered nationwide
Details
| Category | General Hardware |
| Type | Locks, Hinges & Door Hardware |
| Sold per | pc |
Full specifications are confirmed with your quote.
Description
Specifications
: Type: DIN type mortise lock Credentials: - Pin code (6-12 digits) - Proximity card: 4 (up to 40 users) Mechanical key: 2 Center distance: 72mm Backset: 60mm Colour: silver Door thickness: 40-80mm Dimensions: front body 27 (D) x 68.6 (W) x306.6 (H) mm; back body 37(D) x72.8 (W9x 306.6 (H) mm Integration: available upon request-RF link IP 55: water resistant Suitable for left or right opening
Features
Double credentials (PIN code & RF Card key) Fake PIN code Operation status notification Mechanical key override Missing key invalidation Automatic locking Anti-panic egress with safe handle Alarm (break-in/damage) Low battery alarm & emergency power with 9v battery.
