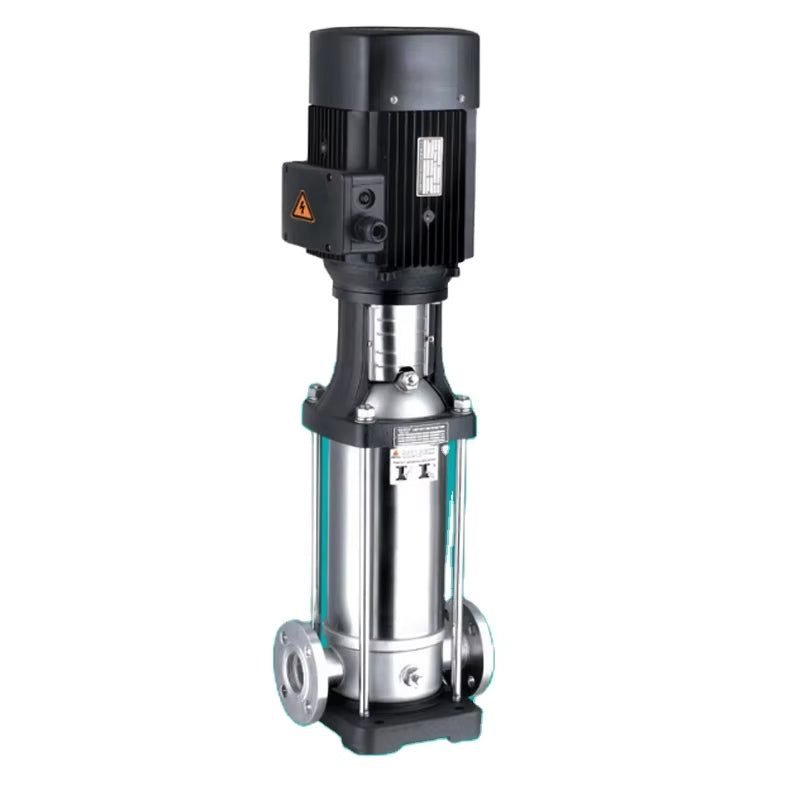

Taifu MTF1 In-Line Pump
The Taifu MTF1 In-Line Pump is a high-head, multi-stage centrifugal booster pump engineered for stable pressure performance in vertical in-line installations. Designed for consistent flow and efficient operation, the MTF1 series supports residential, commercial, and light industrial water boosting applications.
- Brand
- On request
- Category
- Pumps & Motors
- Subcategory
- Pumps
- Sold per
- unit
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
Key Benefits • Multi-stage design for high head and stable pressure output • Compact in-line configuration for space-saving installation • Reliable 60Hz motor operation at 3450 rpm Product Overview The Taifu MTF1 series is built for pressure boosting, vertical transfer, and long-distance water delivery systems. With a maximum flow rate of 2.6 m³/h across all variants, the difference between models lies in motor power and number of stages, directly affecting maximum head capacity.
Operating at 220V and 60Hz, the pump features a 1-inch DIN flange connection and high-speed 3450 rpm motor for efficient and consistent performance. Ideal Applications • High-rise building water boosting • Residential and commercial pressure systems • Long-distance clean water transfer Technical Specifications – MTF1-9 Model MTF1-9 Power (kW) 0.75 Power (HP) 1 HP Frequency 60 Hz Speed 3450 rpm Max Flow 2.
6 m³/h Max Head 77 m Voltage 220V DIN Flange 1" Stage 9 Technical Specifications – MTF1-13 Model MTF1-13 Power (kW) 1.1 Power (HP) 1.5 HP Frequency 60 Hz Speed 3450 rpm Max Flow 2.
6 m³/h Max Head 112 m Voltage 220V DIN Flange 1" Stage 13 Technical Specifications – MTF1-17 Model MTF1-17 Power (kW) 1.5 Power (HP) 2 HP Frequency 60 Hz Speed 3450 rpm Max Flow 2.6 m³/h Max Head 146 m Voltage 220V DIN Flange 1" Stage 17 Available Models & Pricing Model.
