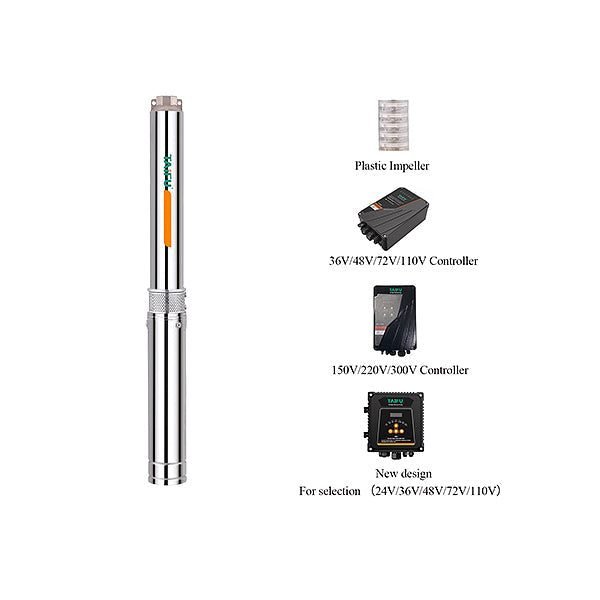

Taifu Hybrid Solar Deep Well Pump 3"
The Taifu 3" Hybrid Solar Deep Well Pump (TSC-HY Series) is engineered for high-efficiency water extraction using either AC or DC power input. Designed for deep well applications, this hybrid AC/DC submersible pump supports solar-powered operation while maintaining compatibility with conventional AC supply.
- Brand
- On request
- Category
- Pumps & Motors
- Subcategory
- Pumps
- Sold per
- unit
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
Key Benefits • Hybrid AC/DC operation for flexible power sourcing • High head performance for deep well water extraction • Energy-efficient operation suitable for solar integration Product Overview The Taifu 3" TSC Hybrid Solar Deep Well Pump series is designed for agricultural irrigation, remote water supply, and off-grid installations. With a 3450 RPM motor speed and high head capability up to 155 meters (model dependent), it delivers stable water output for deep bore applications. These models accept AC voltage from 100–265V and DC voltage from 60–430V, enabling seamless integration with solar panel systems.
Bundled solar setup options are available for complete renewable water pumping solutions. Ideal Applications • Deep well water extraction • Solar-powered irrigation systems • Remote and off-grid water supply Technical Specifications – 3TSC3.5-95-72/750-HY A/M Power 0.
75 kW / 1.0 HP Speed 3450 RPM Max Flow 3.5 m³/h Max Head 95 m Outlet 1" AC Voltage 100–265 V DC Voltage 60–430 V Power Type Hybrid AC/DC Technical Specifications – 3TSC3.
8-125-110/1100-HY NM Power 1.1 kW / 1.5 HP Speed 3450 RPM Max Flow 3.
8 m³/h Max Head 125 m Outlet 1" AC Voltage 100–265 V DC Voltage 60–430 V Power Type Hybrid AC/DC Technical Specifications – 3TSC3.8-155-150/1500-HY NM Power 1.5 kW / 2.
0 HP Speed 3450 RPM Max Flow 3.8 m³/h Max Head 155 m Outlet 1" AC Voltage 100–265 V DC Voltage 60–430 V Power Type Hybrid AC/DC Pricing – Pump Only Model.
