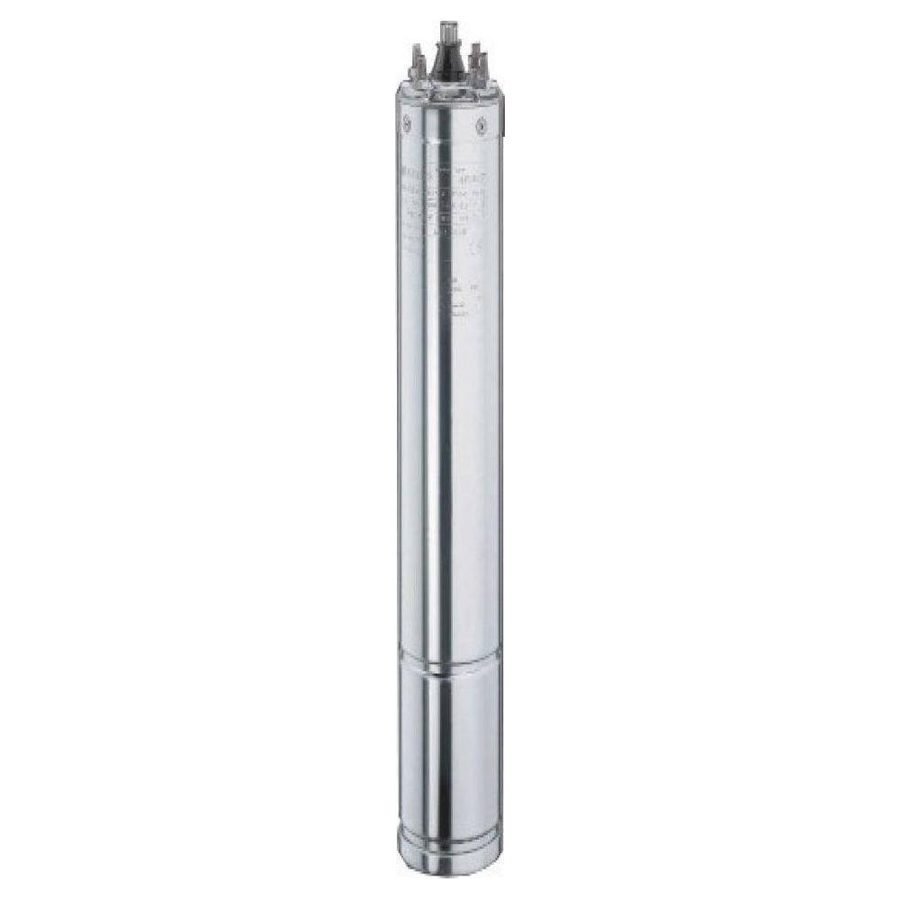

Speroni Submersible Deep Pump Motor - 3 Wire
Made in Italy Speroni Submersible Motor - 3 Wire (Pump end not included) Features • Removable waterproof cable connector for easy maintenance operations. • Cable materials are CE approved (for potable water applications). • Non-toxic oil - Premium quality, colorless white oil.
- Brand
- On request
- Category
- Pumps & Motors
- Subcategory
- Submersible Pumps
- Sold per
- unit
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
• Special stator design for high starting torque in single-phase models. • Unique single-phase electrical design for PSC starting, and starting capacitor + PSC starting. • Motor casing, shaft, upper cover and bottom end made if stainless steel.
• Zinc-plated cast iron upper bracket. • Stator are designed for higher efficiency and the ability to operate within wider voltage fluctuations. • Use of high quality European made components such as mechanical seal, • All motors 100% tested 4” SUBMERSIBLE MOTOR - 3 WIRE APPLICATIONS Rewindable 4” oil Filled submersible motors are designed to operate dependably in 4” and larger boreholes General Specifications Mounting flage 4” NEMA standard Degree of protection IP 68 Insulation class F Single phase motors 0.
37 kW up to 4.0 kW Three phase motors 0.37 kW up to 7.
5 kW Standard voltages 60Hz 1Φ 100 - 116 V 1Φ 207 - 244 V 1Φ 254 V 3Φ 207 - 244 V 3Φ 360 - 424 V 3Φ 460 V Cable length 1.7 M 0.37 kW up to 1.
5 Max starts / h 40 Operating Parameters Max water temperature 35°C Flow rate 0.2m/sec Axial thrust 2000N from 0.37 kW up to 1.
5 kW 2000N 2.2 kW 5000N from 3 kW up to 7.5 kW Max immersion depth 200m Material Specificaitons Component Material Motor Shell 304 Stainless steel Sand Guard NBR Cable Connector EPDM Upper end bracket cover 304 Stainless steel Upper end bracket Zinc plated cast iron Mechanical seal Ceremic/Carbon Shaft (0.
5 - 10HP) 304 Stainless steel/S45C Rotor (0.5 - 3HP) Aluminum Rotor (4 - 10HP) Copper Connector PPS Winding Copper Lower end bracket Aluminum Lower end bracket cover 304 Stainless steel Diaphragm NBR 1 Year Service Warranty.
