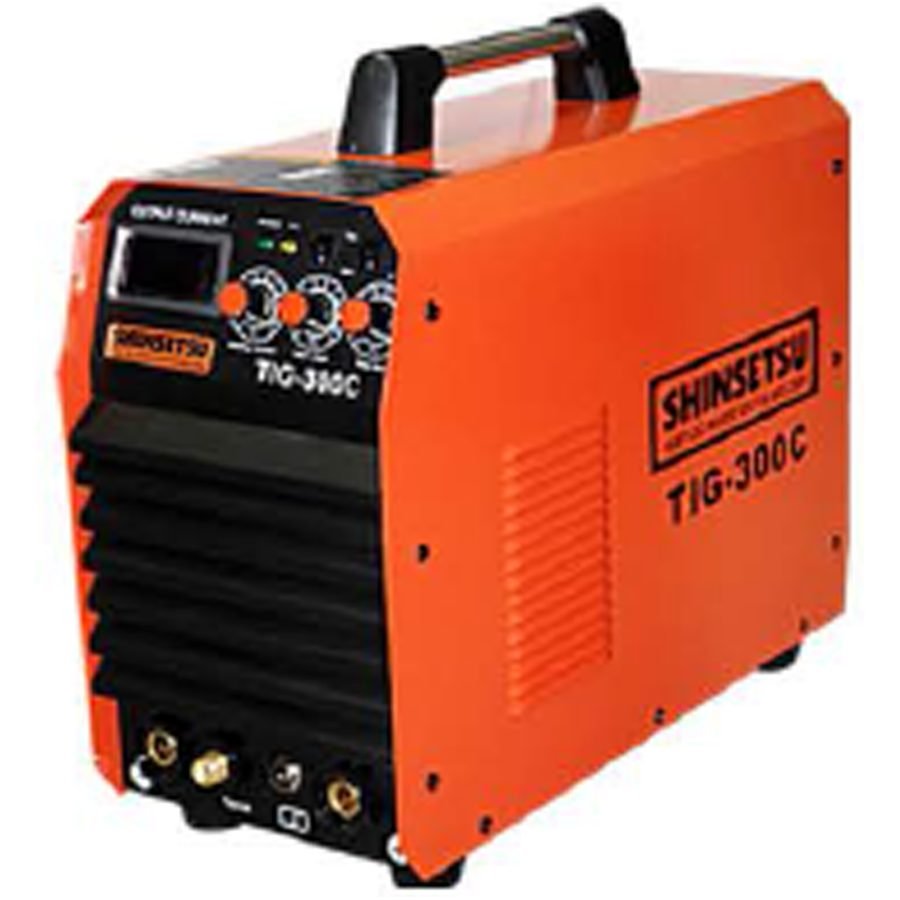

Shinsetsu TIG-300C Inverter Tig Welding Machine 300A
Shinsetsu TIG-300C TIG & MMA Welding Machine The Shinsetsu TIG-300C TIG & MMA Welding Machine is designed for welding applications in fabrication shops, repair work, maintenance areas, and general metalworking use. With TIG and MMA welding capability, this unit is suitable for users who need a powerful and versatile welding machine for different metalworking requirements. This model operates on 220-240V single-phase power and features a 60% rated duty cycle, HF ignite mode, adjustable current range, and included welding accessories for practical shop and site use.
Sold per pc. Brand and stock confirmed on your quote.
Details
| Brand | Shinsetsu |
| Category | Welding Supplies |
| Type | Welding & Cutting Machines |
| Sold per | pc |
Full specifications are confirmed with your quote.
Description
- TIG and MMA welding machine for fabrication, repair, and maintenance work
- 15-275A TIG current adjustment range
- 20-250A MMA current adjustment range
- HF ignite mode
- 60% rated duty cycle
- IP23 protection grade
- Includes electrode holder, ground clamp, TIG torch, and additional TIG accessories Model TIG-300C Input Power 220-240V ± 15% Frequency 50-60Hz Phase 1 Phase Rated Input Power 10.2 / 7.6 kVA Rated Duty Cycle 60% Current Adjustment Range TIG: 15-275 A / MMA: 20-250A Output No-Load Voltage 61V Down Slope Time 0-5s Arc Force Range 0-50A Efficiency 85% Post Flow Range 0.5-10s Power Factor 0.76 Protection Grade IP23 Insulation Class F Ignite Mode HF Dimension 480 x 210 x 360mm Net Weight 22kg Gross Weight 23kg Standard Accessories:
- 1 pc Electrode Holder 300A with Welding Cable 35mm²
- 1 pc Ground Clamp 300A with Welding Cable 25mm²
- 1 pc TIG Torch, air-cooled Additional Accessories:
- 1 pc Short Cap
- 1 pc Long Cap
- 2 pcs Collet
- 2 pcs Collet Body
- 3 pcs Alumina Cap
What’s Included
- 1 pc Shinsetsu TIG-300C TIG & MMA Welding Machine
- 1 pc Electrode Holder 300A with Welding Cable 35mm²
- 1 pc Ground Clamp 300A with Welding Cable 25mm²
- 1 pc TIG Torch, air-cooled
- Additional TIG accessories
