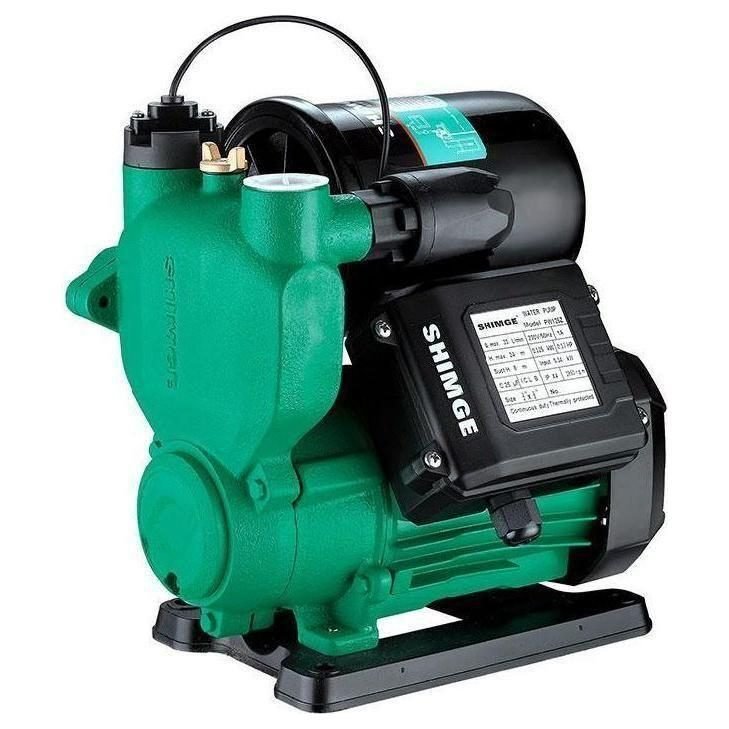

Shimge PW-Z Self-Priming Peripheral Pump
The Shimge PW-Z Self-Priming Peripheral Pump is designed for efficient and stable water transfer in residential and light-duty applications. Built with a 100% copper motor, brass impeller, and intelligent dual-sensor control, it delivers reliable performance for both hot and cold water systems.
- Brand
- On request
- Category
- Pumps & Motors
- Subcategory
- Booster & Jet
- Sold per
- unit
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
Key Benefits • 100% copper motor with thermal protection for longer service life • Self-priming design for convenient and efficient operation • Low-noise performance with stable water pressure output Product Overview The Shimge PW-Z series is a self-priming peripheral pump engineered for clean water transfer and pressure boosting. It integrates both flow sensor and pressure sensor for intelligent operation, making it suitable for automated household water systems. Designed with durable materials including a cast iron pump body with stainless steel insert and brass impeller, the unit ensures long-term performance in residential, commercial, and light agricultural applications.
Ideal Applications • Household water supply and pressure boosting • Well water pumping and water tank supply • Solar and hot water system pressurization Technical Specifications – General Voltage / Frequency 220V / 60Hz Max Suction Lift 8 m Max Liquid Temperature +90°C Max Ambient Temperature +40°C Max Working Pressure 5 bar Technical Specifications – Materials Pump Body Cast iron with stainless steel insert Motor Casing Aluminum Impeller Brass Shaft SUS304 + CS45# Mechanical Seal Ceramic / Graphite / NBR Winding Copper Technical Specifications – Performance Model PWZ370 PWZ550 PWZ750 Power (kW) 0.37 0.55 0.
0 Max Head (m) 33 42 50 Max Flow (m³/h) 2.4 3.0 3.
4 Head Range (m) 1–32 1.5–38 1.5–46 Max Suction (m) 8 8 8 Available Variants & Pricing Model (PHP) PWZ370 PWZ550 PWZ750 What’s Included • 1 × Shimge PW-Z Self-Priming Peripheral Pump Learn more about our Warranty Policy or contact us for professional assistance.
