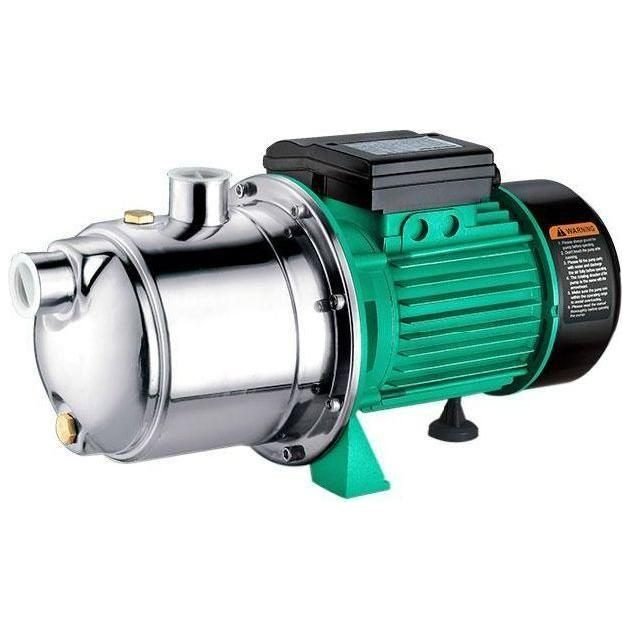

Shimge JET-G1 Self Priming Jet Pump

Product details

Built with a 100% copper thermally protected motor, 304 stainless steel pump body components, and hydraulic optimization design, it delivers reliable performance for residential, agricultural, and light utility water systems. Key Benefits • 100% copper motor with thermal protection for dependable operation • 304 stainless steel pressed tensile pump body and pump cover for durability • Hydraulically optimized design for efficient self-priming performance Product Overview The Shimge JET-G1 series is engineered for transferring clean water and similar non-abrasive liquids in domestic, agricultural, and pipeline boosting systems. Its self-priming jet pump design makes it suitable for well water lifting, garden irrigation, greenhouse water supply, livestock water systems, and general water distribution applications.

The nozzle, guide vane, and impeller are made from PPO engineering plastics for reliable performance, while the product range offers multiple motor sizes to match varying flow and head requirements. A 24L bladder tank configuration is also available for pressure system use. Ideal Applications • Well water lifting and domestic water supply • Garden irrigation and greenhouse water distribution • Pipeline boosting and agricultural water systems Technical Specifications – General Series JET-G1 Self Priming Jet Pump Motor 100% Copper, Thermally Protected Pump Body 304 stainless steel pressed tensile pump body and pump cover Nozzle / Guide Vane / Impeller PPO engineering plastics Liquid Type Clean water and similar non-abrasive liquids Inlet / Outlet Diameter 1" Application Limits Max Suction Head Up to 9 m Liquid Temperature Up to +40°C Ambient Temperature Up to +40°C Max Working Pressure 6 bar Voltage Fluctuation Limit Should not exceed 10% of rated value pH Range 6.

5 to 8.5 Model Specifications – JET320G1 Model JET320G1 Rated Power (kW) 0.37 Rated Power (HP) 0.

5 Power Supply 220V-60Hz Max Flow 3.5 m³/h Max Head 28 m Head Range 2-30 m Max Suction 8 m Model Specifications – JET551G1 Model JET551G1 Rated Power (kW) 0.55 Rated Power (HP) 0.

75 Power Supply 220V-60Hz Max Flow 3.8 m³/h Max Head 40 m Head Range 2-40 m Max Suction 9 m Model Specifications – JET751G1 Model JET751G1 Rated Power (kW) 0.75 Rated Power (HP) 1 Power Supply 220V-60Hz Max Flow 3.

8 m³/h Max Head 48 m Head Range 4-48 m Max Suction 9 m Pricing Model / Size.
