PIUSI Flow Meter

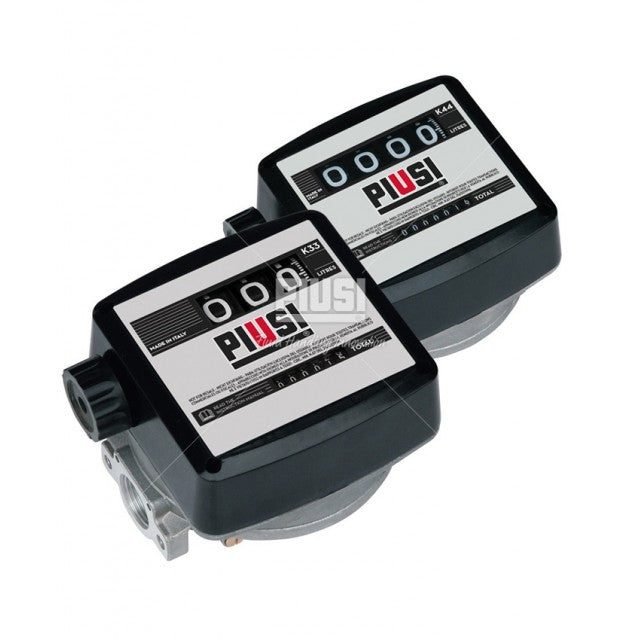

K33 and K44 are notating-disk meters that measure the exact quantity of the dispensed fuel or lubricant. They are designed for non-commercial use only. These flow-meters are reliable, inexpensive, easy to install and simple to calibrate on the workplace. The Pulser model is fitted with a pulse emitter for connection to a fuel management system. Thanks to reduced flow resistance, they can also function by gravity. Performance
Sold per unit. Brand and stock confirmed on your quote.
Details
| Category | Pumps & Motors |
| Type | Engines & Engine Parts |
| Sold per | unit |
Full specifications are confirmed with your quote.
Description
Specifications
- Flow-rate (range): 20÷120 l/min (5,3÷32 gal/min).
- Precision: ±1% of flow range after calibration.
- Repeat ability: 0,2%.
- Max. Operating pressure: 10 bar (142 psi).
- Bursting pressure: 30 bar (426 psi).
- Readout system: – K33, 3-digit subtotals (max 999 liters), 6-digit totals. – K44, 4-digit subtotals (max 9999 liters), 7-digit totals.
- Resolution: 0.1 liter.
- Pulse card type: “Open collector”, frequency: 10 pulses/liter, power supply: 6-24 V DC, max 10 mA. made in Italy.
