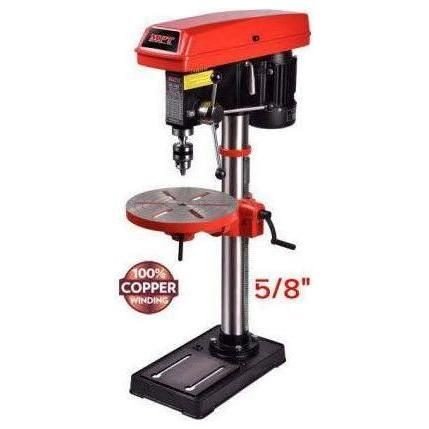

MPT MDP1603 Drill Press 16mm 550W
- Rated Voltage: 220–240V / 50–60Hz
- Motor Power: 550W Max
- Drilling Diameter: 16mm / 5/8"
- Chuck Capacity: 3–16mm
- No-Load Speed: 180–2770 RPM
Sold per unit. Brand and stock confirmed on your quote.
Other sizes and models
Same-Day Quote · Delivered nationwide
Specifications
| Brand | MPT |
| Model | MDP1603 |
| Rated Voltage | 220–240V / 50–60Hz |
| Motor Power | 550W Max |
| Drilling Diameter | 16mm / 5/8" |
| Chuck Capacity | 3–16mm |
| No-Load Speed | 180–2770 RPM |
| Base Size | 420 × 250 mm |
| Height | 980 mm |
Description
The MPT MDP1603 Drill Press is a 16mm bench-type drilling machine engineered for precise vertical drilling in metal, wood, and plastic materials. Powered by a 550W motor, it delivers stable performance and adjustable speed control for workshop and fabrication use.
Key Benefits
- 550W motor provides consistent drilling performance
- Wide speed range from 180–2770 RPM for material flexibility
- 3–16mm chuck capacity supports various drill bit sizes
- Rigid base and column design for improved stability
Product Overview
The MPT MDP1603 is designed for controlled and accurate drilling operations where alignment and repeatability are critical. With a maximum drilling diameter of 16mm (5/8"), it is suitable for general fabrication, light industrial work, and workshop production tasks. The machine features a solid base measuring 420 × 250 mm and an overall height of 980 mm, providing a stable footprint while maintaining ergonomic working height.
Ideal Applications
- Metal fabrication and workshop drilling
- Woodworking and plastic drilling
- Maintenance and repair operations
What’s Included
1 × MPT MDP1603 Drill Press (16mm, 550W)
