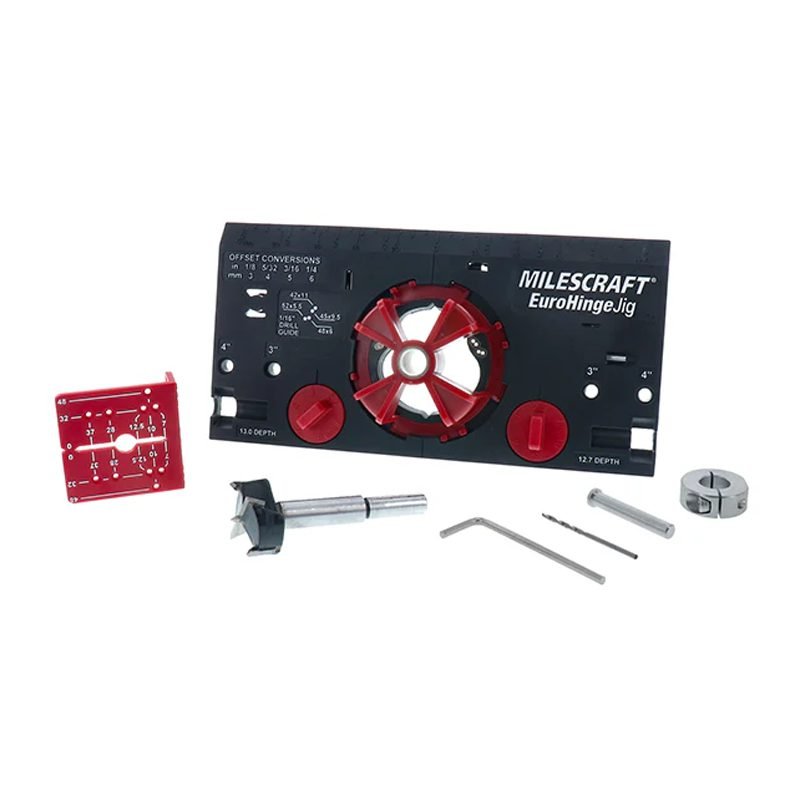

Milescraft EuroHingeJig Concealed Hinge Jig (1342)
The Milescraft EuroHingeJig Concealed Hinge Jig (#1342) is a precision woodworking tool designed for accurate installation of European-style concealed hinges. With adjustable edge offsets and built-in drill guides, it ensures consistent hinge placement for professional cabinet and furniture assembly.
- Brand
- Milescraft
- Category
- General Hardware
- Subcategory
- Locks & Hinges
- Sold per
- pc
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
Key Benefits • Adjustable edge offsets allow precise hinge cup positioning • Integrated drill guides ensure straight and accurate hinge holes • Includes 35mm boring bit and depth settings for consistent results Product Overview The Milescraft EuroHingeJig is engineered for accuracy and ease of use, making it ideal for cabinet makers and DIY users. The dual edge alignment knobs allow precise adjustment of hinge cup positioning, while the locator pin ensures consistent placement from the top or bottom of the door. Built-in metal guide bushings provide stable drilling for both hinge cup holes and pilot holes, ensuring proper alignment and smooth door operation.
The included hinge marking guide simplifies layout work by allowing easy transfer of hinge locations to cabinet frames or walls. Ideal Applications • Installation of concealed cabinet hinges • Cabinet door fabrication and repair • Furniture assembly and woodworking projects Technical Specifications Brand Milescraft Model 1342 (EuroHingeJig) Product Type Concealed Hinge Jig Edge Offset Settings 2.5mm 3mm 4mm 5mm 6mm 7mm Locator Pin Offsets 3″ 4″ Drill Bit 35mm Euro Hinge Boring Bit Shank 3/8″ Round Depth Settings 12.
7mm 13mm Depth Stop 3/8″ Split What’s Included • Milescraft EuroHingeJig • 35mm Euro Hinge Boring Bit • Hinge Marking Guide • 1/16″ Pilot Bit • 3mm Allen Wrench Learn more about our Warranty Policy or contact us for professional assistance.
