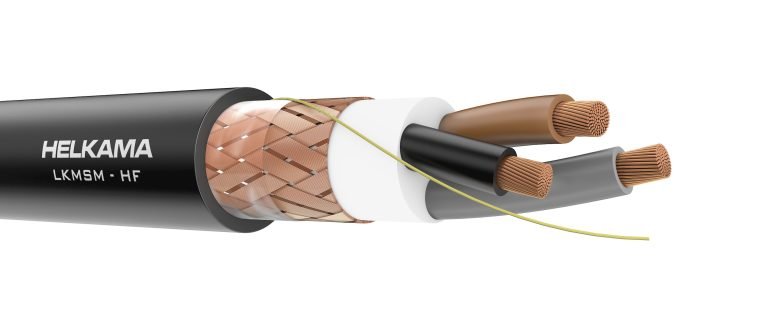

LKSM-HF
Product Name LKSM-HF Conductor Stranded copper conductor 1.0-10 mm², IEC 60228 Class 2 Stranded copper conductor 16-300 mm², IEC 60228 Class 5 INSULATION XLPE, IEC 60092-360 CABLING Cores twisted together.
- Brand
- On request
- Category
- Electrical Supply
- Subcategory
- Wires & Cables
- Sold per
- pc
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
Fillers or dummy cores included in select sizes based on product specifications to obtain symmetrical and round construction. BEDDING Lapped tape ARMOUR Copper wire braid, coverage > 90%, IEC 60092-350 RIP CORD For conductors ≥ 16 mm² SHEATH Polyolefin SHF1, IEC 60092-360 Standard colour black, other colours on request Application Armoured power and control cable. For fixed installation in most areas, and on open deck in ships and offshore units.
RATED VOLTAGE AC 0,6/1kV (1.2 kV) DC 0.9/1.
5 kV (if voltage to earth does not exceed 0.9 kV) FIRE PERFORMANCE IEC 60332-1-2 IEC 60332-3-22 HALOGEN-FREE IEC 60754 series SMOKE EMISSION IEC 61034 series MIN. INSTALLATION TEMPERATURE -15 °C OPERATING TEMPERATURE -40 – 80 °C fixed installation MAX.
