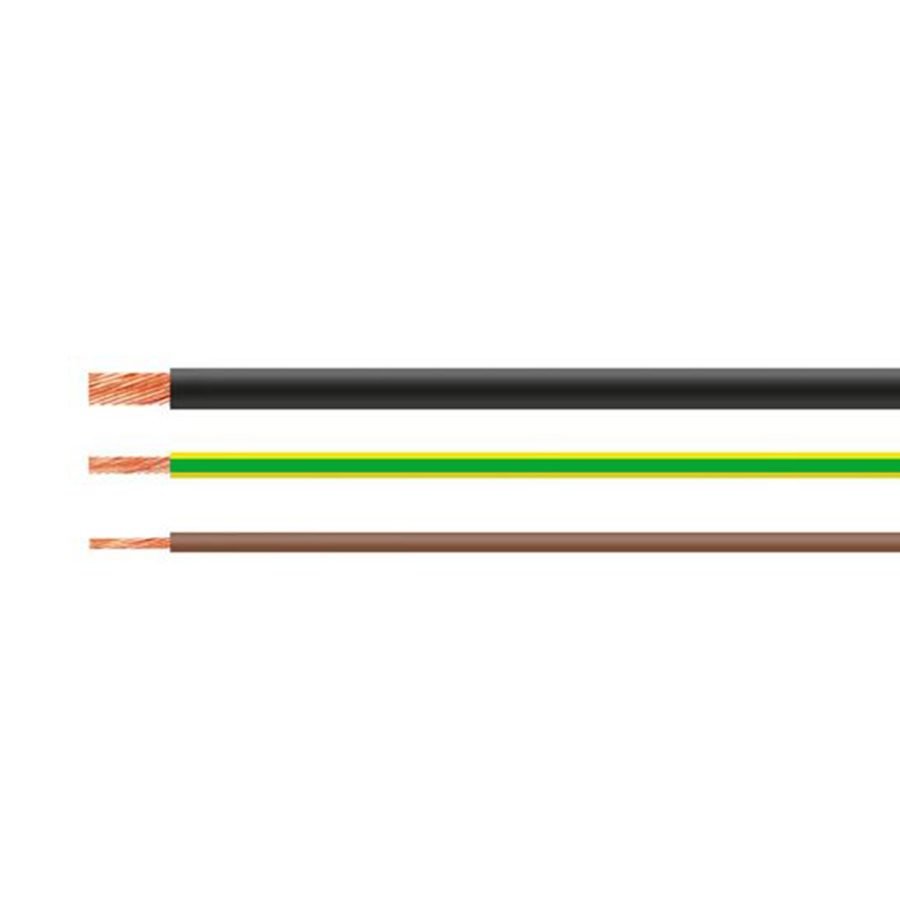

Helukabel – H07V-K
Technical Data PVC single core, H07V-K acc. to DIN VDE 0285-525-2-31 / DIN EN 50525-2-31, IEC 60227-3; 07V-K in alignment with DIN VDE 0285-525-2-31 / DIN EN 50525-2-31, IEC 60227-3 Temperature Range
Sold per pc. Brand and stock confirmed on your quote.
Details
| Category | Electrical Supply |
| Type | Wires & Cables |
| Sold per | pc |
Full specifications are confirmed with your quote.
Description
- flexible +5°C to +70°C
- fixed -30°C to +80°C Nominal Voltage AC U0/U 450/750 V Test Voltage 2500 V Minimum Bending Radius:
- <8 mm: 4x Outer-ø
- 8-12 mm: 5x Outer-ø
- >12 mm: 6x Outer-ø Cable Structure
- Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Core insulation: PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI1)
- Core identification: see datasheet Test
- flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- certifications and approvals:
- H07 V-K: HAR
- H07 V-K: EAC Application Installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.
