Details
| Category | Pumps & Motors |
| Type | Submersible Pumps |
| Sold per | unit |
Full specifications are confirmed with your quote.
Description
Features

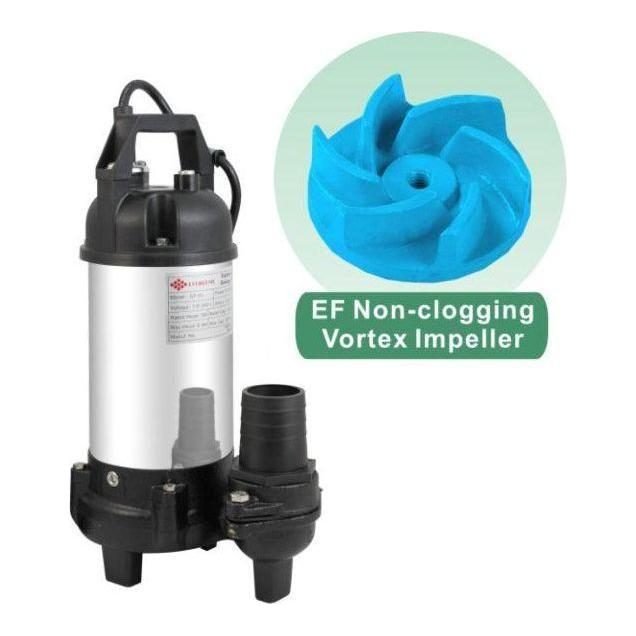

- Non-clogging impeller minimizes abrasives wear and allows large solid passage.
- Dry motor with overload protector; Cable with an epoxy resin sealed water-proof cable hood; Use deep groove C3 bearing to extend life time.
- Superior abrasion resistant double mechanical seal to ensure best seal effect.
- Oil seal mounted outside of seal chamber stops solids gathering around seal faces.
Applications
- Waste water drainage from all industries
- Sewage drainage from hotels, restaurants, schools, malls and public facilities.
- Fishery, animal husbandry, stock farm, piggery, fecal sewage tank in waste water treatment plant.
- Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory. Motor Specs:
- 2P Dry or Oil type motor.
- Insulation: F class.
- Protection: IP68 Model EF-05 EF-10 EF-20 EF-30 Power 1/2 HP 1 HP 2 HP 3 HP Phase 1⌀ 1⌀ 1⌀ 1⌀ Voltage 220V/60Hz Current 3A 6A 12A 18A Discharge dia. 50mm 50mm 80mm 80mm Max Head 10m 13m 17m 20m Max Capacity 280 l/min 345 l/min 630 l/min 700 l/min.
