Details
| Category | Pumps & Motors |
| Type | Fire Pumps |
| Sold per | unit |
Full specifications are confirmed with your quote.
Description
Applications

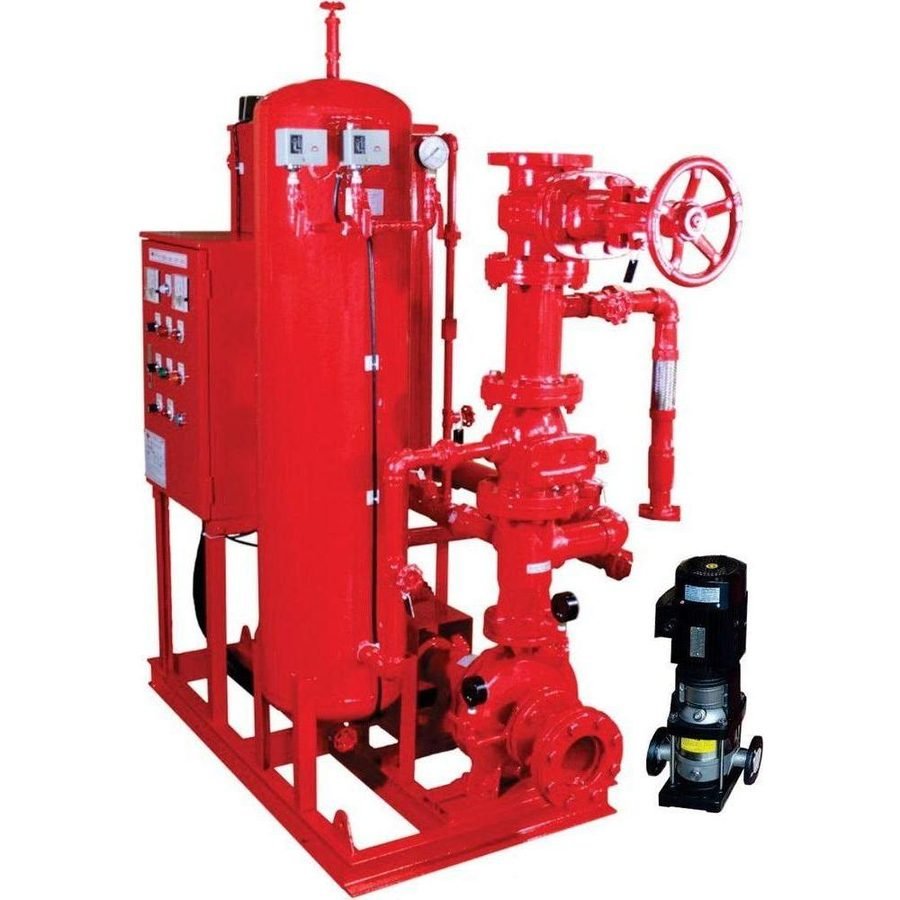

Water supply and auto boost water pressure to the fire sprinkler system, fire hydrant, fire foam system of the buildings, malls, hotels, factories, stadium, parking area, stations, airports, schools. Model Without Jockey Pump With Jockey Pump FF80-XA3220-27.5 FF100-XA5016-211 FF100-XA5016-211 Rated Q: 13m3/hr 46m3/hr 46m3/hr Rated H: 61 meters 45 meters 45 meters Driven Electric Motor: 3 Phase/ 220V~60Hz 3500 rpm / 7.5KW (10HP) 3 Phase/ 220V~60Hz 3500 rpm / 11KW (15HP) 3 Phase/ 220V~60Hz 3500 rpm / 11KW (15 HP) Suction Pipe: 80mm (3") 100mm (4") 100mm (4") Discharge Pipe: 80mm (3") 100mm (4") 100mm (4").
