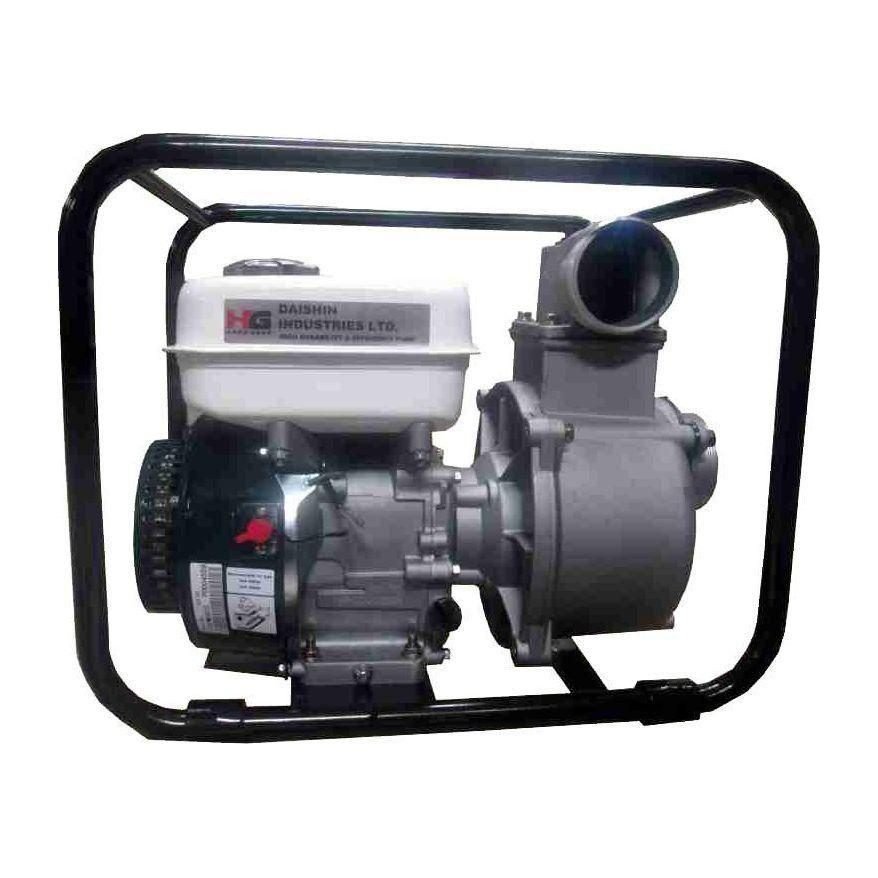

Daishin Self Priming Irrigation Pump (HG Series)
Features Pump unit is made with precision mould aluminum, durable cast-iron volute, semi-open cast-iron impeller, mechanical seal. Applications Suitable for general purpose pumping, irrigation, agriculture application, long distance water transportation, cleaning, etc.
- Brand
- On request
- Category
- Pumps & Motors
- Subcategory
- Pumps
- Sold per
- unit
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
Model SCR-50HG SCR-80HG Pump Type OEL-50 OEL-80 Inlet ø x Outlet ø mm (inch) 50 x 50 (2x2) 80 x 80 (3x3) Max. Total Head m(ft) 32 (105) Sunction Lift m(ft) 33 (105) Priming Water Capacity (l) 2.1 3.
8 Max Capacity (l/min) 520 1000 Max Shutoff Pressure (Mpa) 0.3 Engine Maker HG Engine Model HG170P Displacement (cm3) 163 Max Power KW(PS)/4000min-1 4.0 (5.
4) Fuel Automobile Gasoline Fuel Tank Capacity 3.3 Starting System Recoil Dry Weight 25 26 Packing Measurement LxWxH 543 x 384 x 447mm.
