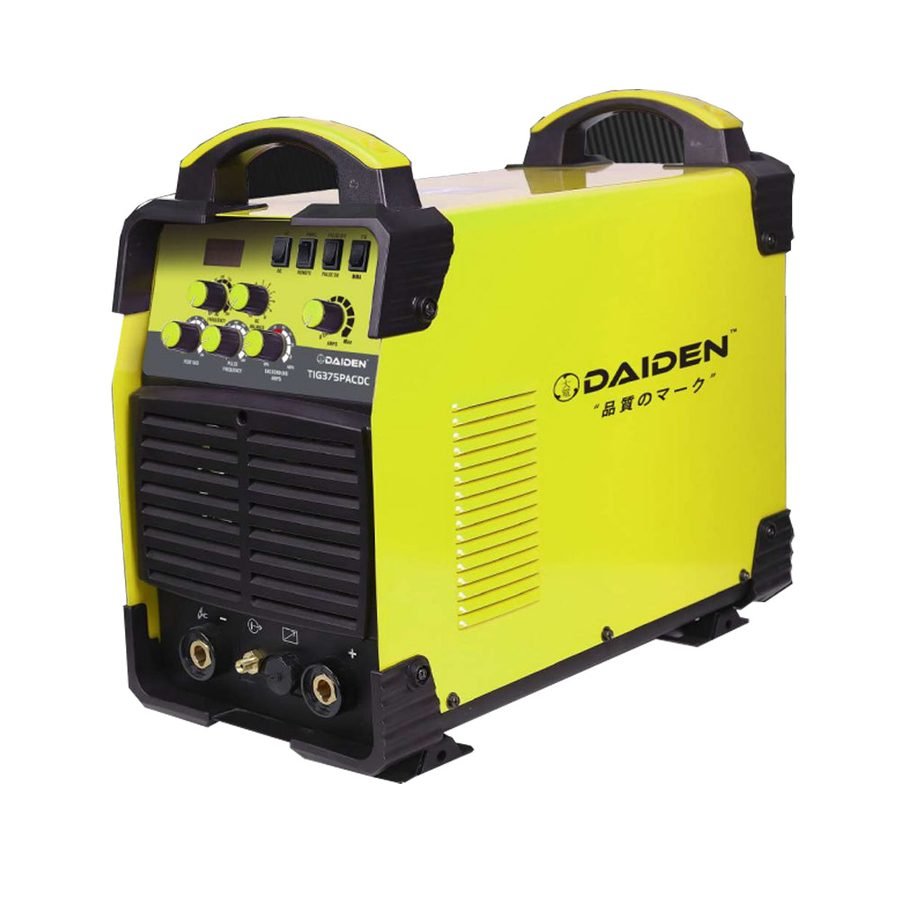

Daiden TIG375PACDC AC/DC (TIG/MMA) Welding Machine (E204)

Key Features

- AC/DC TIG with HF ignition, MMA - AC square wave, adjustable AC balance - Adjustable pulse frequency and base current in pulse TIG welding - Adjustable post-flow time - Dual voltage 1ph-220/440 V AC, auto input voltage detection machine can be connected to two live wires of 3ph 220/440 V power - Remote control interface is available for analog torch and pedal remote controller - Optional 6.5L water cooler and trolley Model TIG375PACDC Input Voltage 1ph 220 V AC±15%, 50/60 Hz 1ph 440 V AC±15%, 50/60 Hz l1 max 44 A 38 A l1 eff 26 A 23 A Output current range MMA DC: 5~275 A DC: 5~375 A AC: 5~260 A AC: 5~360 A Output current range MMA 10~200 A 10~300 A Rated duty cycle TIG 35% 35% Rated duty cycle MMA 40% 35% Open circuit voltage 84 V Pre-flow time 0.5 s Post-flow time 0.5~20 s AC Frequency 20~200 Hz Pulse frequency 1~200 Hz Pulse frequency 50% Base current 10~90% of peak current Dimensions 520×260×440 mm Weight 30 kg.
