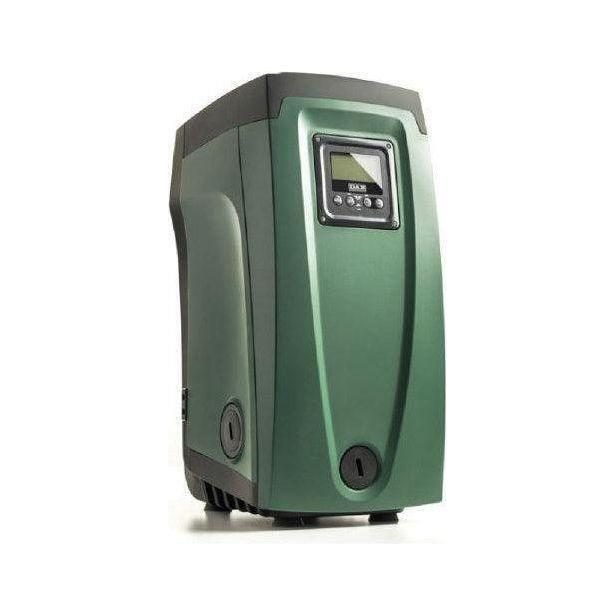

DAB ESYBOX Automatic Booster Pump System With Inverter
Automatic booster system with inverter ESYBOX Esybox is a patented booster system, unique in its category, with high performances, efficient, compact, easy and satisfying in the use both for the installer and the final user. When Esybox mini is the solution for water boosting in small dwellings, Esybox offers the same advantages in collective residential applications, such as villas or condos. Wireless technology allows to set up booster sets up to 4 pumps.
Sold per unit. Brand and stock confirmed on your quote.
Details
| Category | Pumps & Motors |
| Type | Booster & Jet Pumps |
| Sold per | unit |
Full specifications are confirmed with your quote.
Description
Specifications
Input current frequency 50/60 Hz Input current voltage 1 x 220/240 ~ VAC Current intensity 12 A Maximum absorbed power - P1 1550 W Overall dimensions 565x265x352 mm without feet Empty weight (excluding packaging) 24,8 kg Protection class IP x4 Motor insulation class F Maximum head 65 m Maximum flow rate 120 l/min Priming <5min at 8m Maximum working pressure 8 bar Liquid temperature max 40 °C Environment temperature max 50 °C Storage environment temperature -10÷60 °C 1 Year Service Warranty.
