Model 100RL-E

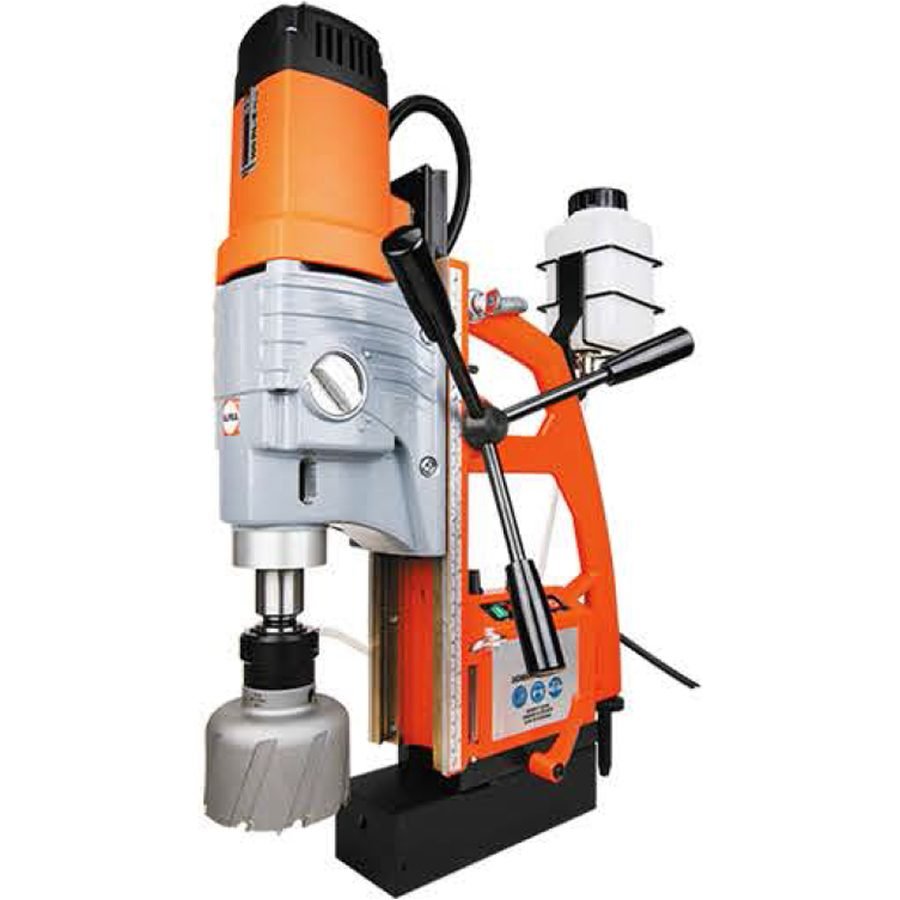

Alfra 100RL-E Magnetic Drill Press 2500W

Input Voltage: 230V / 50–60Hz
Max Cutter Diameter: 100 mm (extra long)
Max Cutting Depth: 50 mm
Weight: 28 kg

Sold per unit. Brand and stock confirmed on your quote.

Other sizes and models

60RL 1800W100RL 2500W

Same-Day Quote · Delivered nationwide

Specifications

Brand	Alfra
Model	100RL-E
Product Type Magnetic	Drill Press
Input Voltage	230V / 50–60Hz
Speed	Gearbox 50–110 / 75–175 / 105 / 165–385 rpm
Max Cutter Diameter	100 mm (extra long)
Max Cutting Depth	50 mm
Tapping Capacity	M30
Twist Drill Diameter	Up to 32 mm Arbor MT3 Magnetic Adhesion 4,000N / 20,000N Stroke 245 mm
Height	Adjustment 116 mm
Magnet Foot Size	80 x 230 mm Adjustability 30° left/right, 10 mm front/rear
Weight	28 kg

Description

Alfra 100RL-E Magnetic Drill Press 2500W is an extra heavy-duty industrial magnetic drill press designed for large-scale steel fabrication, construction, and high-capacity metal drilling applications. Equipped with a powerful 2,500W motor and reinforced magnetic base, this unit delivers maximum cutting performance, stability, and precision for demanding professional environments.

Key Benefits

Ultra-powerful W motor: Designed for extreme heavy-duty drilling and fabrication tasks.
Large cutting capacity: Supports up to 100mm extra-long cutter diameter for oversized drilling applications.
Strong magnetic adhesion: 4,000N / 20,000N magnetic force ensures maximum stability on steel surfaces.
Extended stroke capacity: 245mm stroke allows deeper and more flexible drilling operations.
Multi-speed gearbox: Wide speed range for controlled performance across different materials.

Product Overview

The Alfra 100RL-E Magnetic Drill Press is engineered for heavy industrial use where maximum drilling power and stability are required. It is ideal for steel construction, shipbuilding, infrastructure projects, and large fabrication works. Its reinforced design allows safe operation even under extreme load conditions.
