Specifications
| Model | SM7 |
| Power Input | 110-120V:1700W, 220-240V:2200W |
| Voltage | 110-120V~ 50-60Hz, 220-240V~ 50-60Hz No Load/Min-1 3200 – 6500 |
| Wheel Diameter | 180mm (7″) Arbor 22.23mm (7/8″) or 25.4 (1″) Spindle M14 or 5/8-11 Soft Start & |
| Overload Protection | With DimensionsLxWxH) 246mm x 280mm x 325mm |
| Net Weight | 5.74kg (12.62 Lbs) 6 Months Service Warranty. |
Description

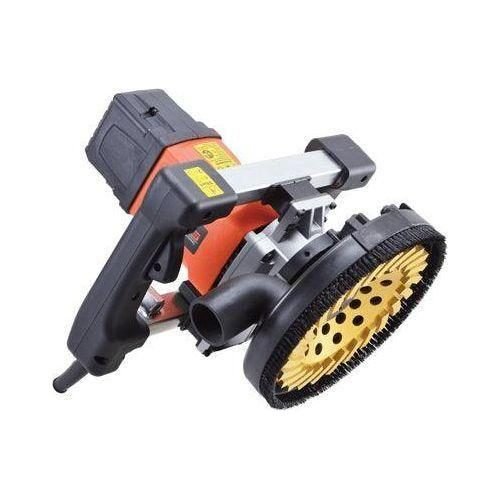

- The SM7 is a purpose-built 180mm concrete grinder with excellent dust control, ideal ergonomics and optimized power characteristics for fast grinding results.
- The handle assembly is anti-vibration rubber mounted for operator comfort.
- The dust skirt has a spring suspension to allow it to follow irregularities in the work surface and a swiveling dust port to ensure the best possible dust collection.
- It also uses a tool-free half-moon door for edge grinding.
- Speed is adjustable to suit various operating conditions.
- The motor uses sophisticated electronic control circuitry, which includes soft start, overload and constant speed electronics for even speed under all load conditions.
- This results in an excellent finish.
- Use the optional floor grinding trolley for fatigue free floor grinding from a standing position.
- In our unique design, the operator uses side mounted handles which allows much superior control of the grinder’s movement and more leverage.
- It pivots on 2 casters and its spring suspension allows the machine to be held perfectly parallel to the work surface.
- It’s very convenient, with a separate masterswitch, hooks for holding the vacuum hose and coiling the power supply cable.
