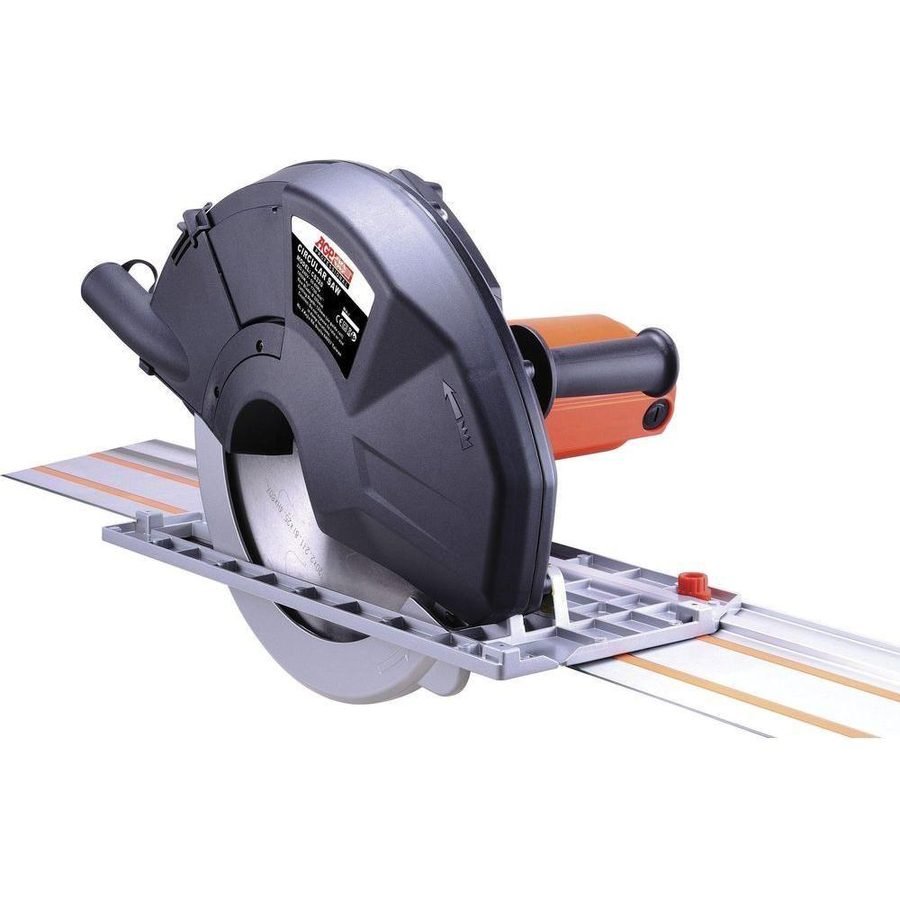

AGP CS320 Metal Circular Saw
- Power Input: 1800W at 220–240V 1700W at 110–120V
- Frequency: 220–240V~ 50–60Hz 110–120V~ 50–60Hz
- Blade Diameter: 320 mm Arbor
- Hole Diameter: 25.4 mm / 1 inch
- Dimensions: 500 × 342 × 355 mm
Sold per unit. Brand and stock confirmed on your quote.
Specifications
| Brand | AGP |
| Model | CS320 |
| Product Type | Dry-Cut Metal Circular Saw |
| Power Input | 1800W at 220–240V 1700W at 110–120V |
| Frequency | 220–240V~ 50–60Hz 110–120V~ 50–60Hz |
| Blade Diameter | 320 mm Arbor |
| Hole Diameter | 25.4 mm / 1 inch |
| Maximum Cutting | Depth 128 mm |
| Dimensions | 500 × 342 × 355 mm |
| Net Weight | 8.4 kg / 18.52 lb Recommended |
| Blade Type | Compatible 320 mm TCT dry-cut saw blade selected according to the material |
Description
The AGP CS320 Metal Circular Saw is a large-capacity dry-cut saw designed for accurate on-site cutting of sandwich panels, steel, stainless steel, aluminum, and other compatible materials. Its 320 mm blade capacity provides an extra-deep cutting depth of up to 128 mm, making it suitable for thick panels and large-section workpieces.
Key Benefits
- Large 320 mm blade capacity provides cuts up to 128 mm deep
- Optional guide-rail compatibility supports long, straight, and accurate panel cuts
- Integrated swarf chamber collects metal chips, foam insulation, and cutting debris
- Vacuum extraction port provides additional dust control when cutting composite panels
- LED load indicator helps the operator maintain an efficient cutting load
- Soft-start and overload protection support safer operation and motor durability
Product Overview
The AGP CS320 is particularly suitable for cutting insulated sandwich panels, including deeply corrugated panels that can be difficult to cut accurately with jigsaws or reciprocating saws. When paired with the optional guide rail, the saw can produce controlled and straight cuts while reducing damage to protective surface coatings. Its dual debris-management system allows collected material to be stored inside the integrated swarf chamber or extracted through the vacuum port. A high-efficiency 1800W motor provides strong torque, while the load indicator alerts the operator when the saw is approaching overload.
Ideal Applications
- Cutting insulated sandwich panels
- Cutting corrugated metal roofing and cladding panels
- Cutting steel, stainless steel, and aluminum
- Cutting compatible plastics and composite construction panels
- On-site metal fabrication, roofing, cladding, and installation work
What’s Included
- 1 AGP CS320 Metal Circular Saw
- 1 Side handle
- 1 M6 hex key
